Grove LED String Light

PreviousGrove LED Socket KitNextGrove LED Strip Driver

Last updated 5 years ago

Was this helpful?

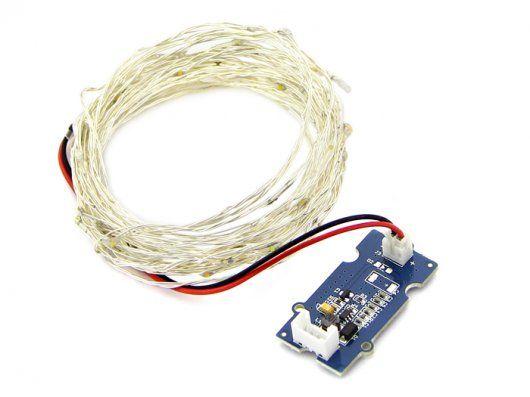

The Grove - LED String Light module is essentially an LED driver for the LED string lights included in the pack. Working voltage of the module is 3.3V/5V. However, the LED string lights require a working voltage of 12V. Therefore, this module uses a AIC1896 current mode step up DC-DC Converter to provide the requisite voltage to the LED string lights. The LED string light is 5 meters in length and has 50 RGB LEDs on it connected equidistant to one another. You can use these to dress a Christmas tree, light your party or to decorate your room.

Features

  • Used in conjunction with LED string lights

  • LED String lights of 5 meters length included with the pack

  • 50 RGB LEDs connected at equal distances along the entire length of 5 meters give a colorful appearance

  • JST 2.0 Interface used to connect the LED String lights with the driver module

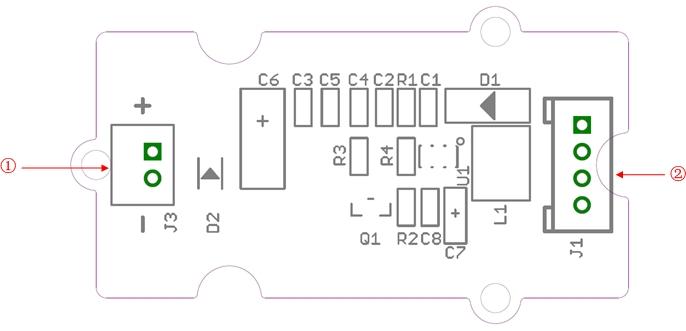

Interface Function

① JST 2.0 interface: Used to connect to LED String Lights② Grove interface: HIGH on SIG (Pin 1) turns the LED String Lights ON, LOW turns them OFF

Usage

Follow these steps to build a sample circuit using this module:

  1. First connect the LED string lights to the Grove - LED String Light module using the JST2.0 two-wire interface.

  2. Power up the circuit.

  3. LED String lights light up when the input module supplies a trigger:

  • If using with a slide potentiometer, move the slider from the GND position to VCC and see the brightness of the lights increase as the supplied voltage increases. </dd></dl> </dd></dl> </dd></dl>

Availability

Resources

Uses Standard 4-pin to connect to other modules

Connect the LED string lights module to the output side of your circuit (to the right of the power module). On the input side of the circuit, you may use a range of sensor based input modules (, , or .

If using with a light sensor connected directly to the input side of the circuit, you should see the LED light up in bright light. If you want the lights to light up in the dark, add a module between the light sensor and the power module.

If using with a sound sensor, you should see the LEDs light up on detecting sound. Again, if you want to reverse the function, or in other words, if you want that the lights should be ON at all times except when there is a sound, add a module between the sound sensor and the power module.

If using with a momentary switch like the one on the module, simply press the button to light up the string lights.

Below is an illustration of a Grove circuit built using the power module:

If you do not have the Grove - USB Power module, use the module instead to turn ON the LED string lights.

This module is available as part of the following :

Alternatively, it can be bought stand-alone at the .

[]

[]

Grove Cables
Grove
Grove - Light Sensor
Grove - Sound Sensor
Grove - Button
Grove - Slide Potentiometer
Grove - NOT
Grove - NOT
Grove - Button
Grove - USB Power
Grove - DC Jack Power
Grove
Grove Kit Series
Grove Mixer Pack V2
Seeed Studio Bazaar
Schematic PDF
Eagle File
