Grove NunChuck

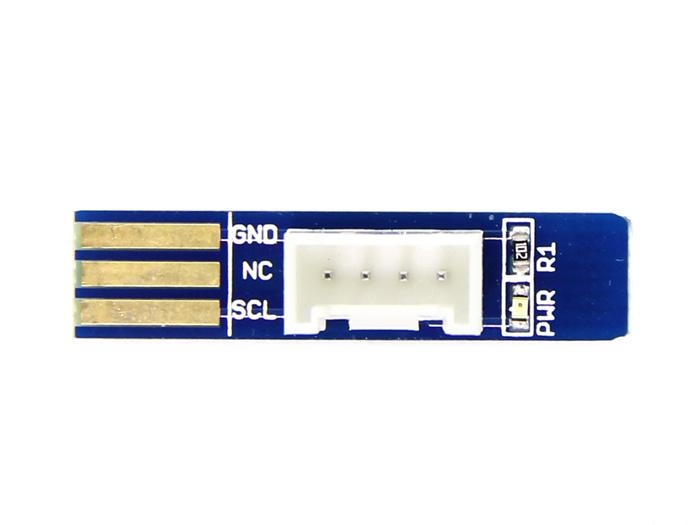

The Grove - NunChuck is a small PCB that adapts the Wii Nunchuck connector to standard Grove connector. The power, ground and two-wire interface of the Nunchuck are all broken out to a 4-pin 0.1" pitch header. This “Grove - NunChuck”, let you play with the Wii Nunchuck and other Wii remote peripherals without needing you to cut cables. Just plug it into the Wii Nunchuck, then into the Grove - Base Shield.

There is Wiichuck- A Wii-Nunchuck break out board, they are similar.

• Designed to be inserted into the connector of a Nintendo Wii Nunchuck

• Connects to Grove - Base Shield

• Interface Type: I2C

• Work Voltage: +5 V

Resource File: Grove - NunChuck Eagle File
