I2C LCD

PreviousGrove Red LEDNextSensors

Last updated 5 years ago

Was this helpful?

enter image description here

I2C_LCD is an easy-to-use display module, It can make display easier. Using it can reduce the difficulty of make, so that makers can focus on the core of the work.

We developed the Arduino library for I2C_LCD, user just need a few lines of the code can achieve complex graphics and text display features. It can replace the serial monitor of Arduino in some place, you can get running informations without a computer.

More than that, we also develop the dedicated picture data convert software (bitmap converter)now is available to support PC platform of windows, Linux, Mac OS. Through the bitmap convert software you can get your favorite picture displayed on I2C_LCD, without the need for complex programming.

I2C_LCD can provide you with a very convenient way of make. Enjoy yourself!

Features

  • Only 2 Arduino pins are occupied (Use I2C interface).

  • Supports standard I2C mode (100Kbit/s) and fast I2C mode (400Kbit/s).

  • Compatible with multiple communication logic levels: 2.8~5VDC.

  • Arduino library supported, use a line of code to complete the display.

  • Integrate 7 sizes of ASCll fonts, 5 graphics functions.

  • Provide dedicated picture data convert software (Bitmap Converter).

  • Most of the complex operation is processed by I2C_LCD independent controller, saving user controller resources.

  • Supports cursor function, can set up 16 cursor flicker frequency.

  • Supports 128 level backlight lightness adjustment.

  • Support 64 level screen contrast adjustment.

  • Support device address modification.

  • Supports 127 I2C_LCD work in parallel.

  • When debugging code, it can take the place of the serial monitor to monitor the program running state.

  • Two abnormal recovery methods are provided: reset and restore the factory settings.

  • Compatible with Grove interface and 4Pin-100mil interface (under the Grove socket).

  • 4 symmetrical fixed hole design for easy user installation.

  • China style unique appearance.

Platforms Supported

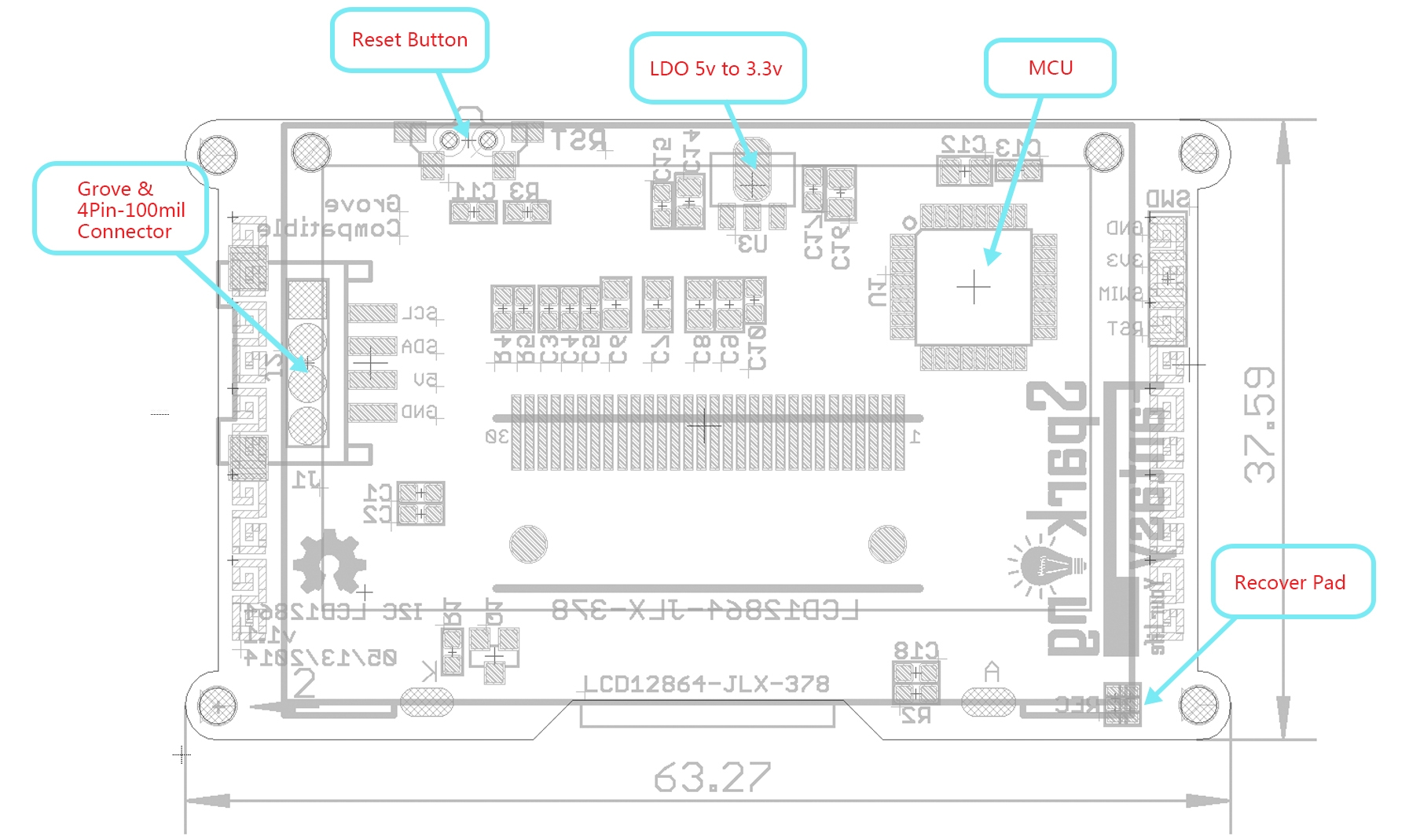

Interface Function

Specification

Parameter

Value

Screen Type

Dual colour LCD

Screen Resolution

128*64 Pixels

Screen Active Area (L*W)

47.1*26.5mm

Individual Pixel Size

0.33*0.33mm

Communication Mode

I2C(100Kbit/s and 400Kbit/s)

Controller

STM8S005KBT6

Operating Frequency

16 MHz

Weight

20g

Electrical Characteristics

Parameter

Min.

Typical

MNax.

Unit

Supply voltage(5V to GND)

4.5

5

5.5

V

Logic Voltage(SCL/SDA)

2.8

5

5.5

V

HBM ESD

-

5000

-

V

Temperature

-20

25

70

℃

Application Ideas

Here is some funny project for your reference.

Display Picture

Clock With Calendar

Used As Debuger

Automatic Humidifier

Snake Game

Getting Started

Step 1: Install the latest version of Arduino IDE to your computer.

Step 2: Download and install the I2C_LCD library to Arduino IDE:

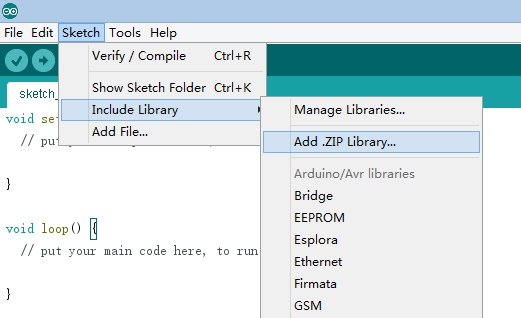

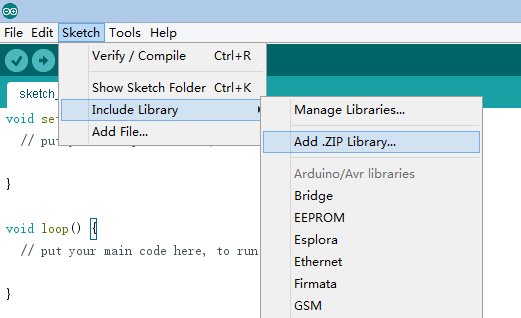

Open Arduino IDE, click Sketch -> Include library -> Add .ZIP library.

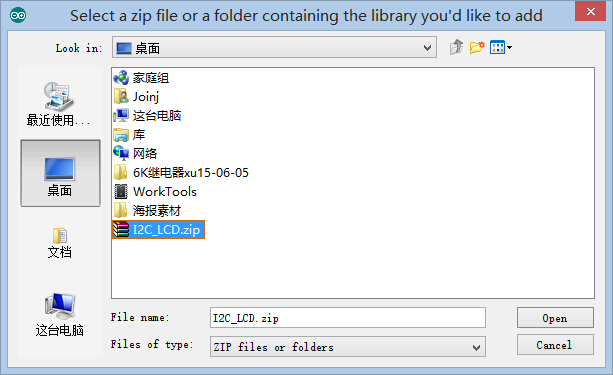

Find and select the I2C_LCD.zip file you just downloaded.

Restart the Arduino IDE.

Step 3: Chose the example project which you like. (Take "HelloWorld" project for example here.)

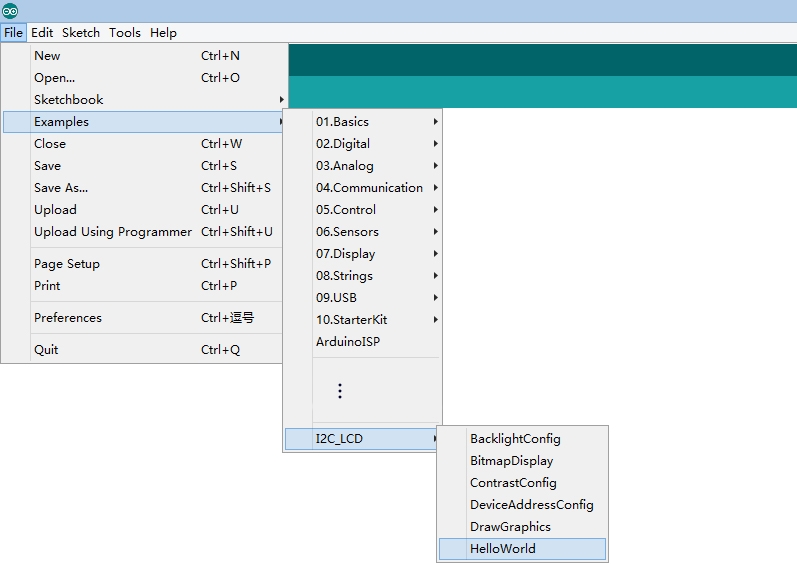

Click File > Examples > I2C_LCD > HelloWorld

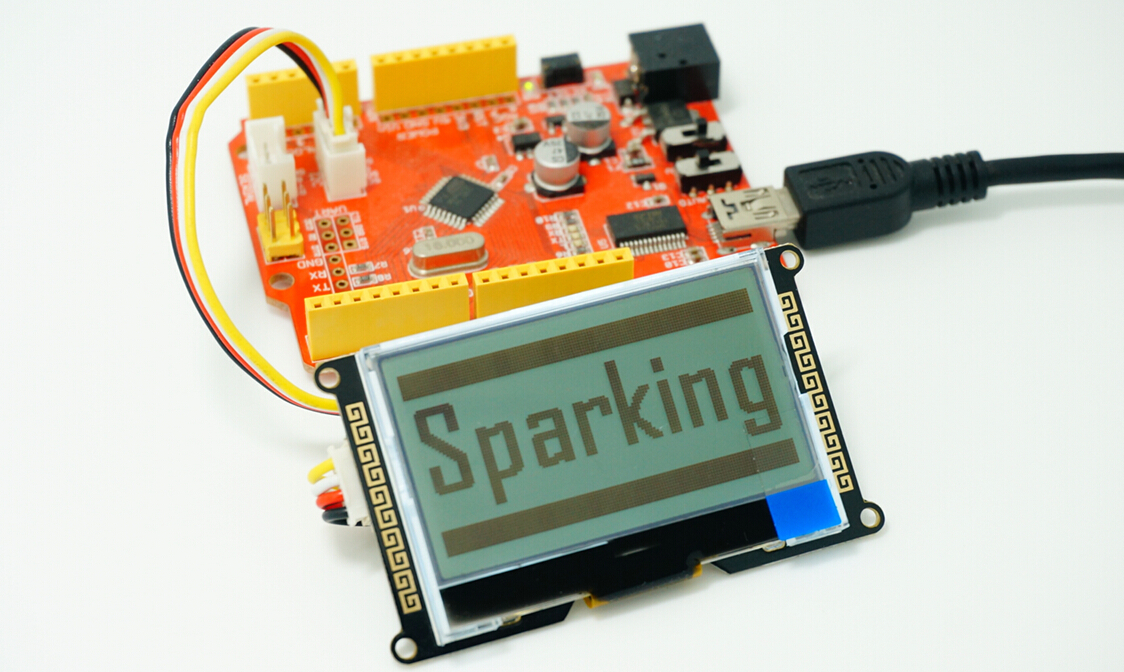

Step 4: Connect I2C_LCD to your Seeeduino Vx board with Grove cable. Then connect Seeeduino Vx board to your computer.

Step 5: Select your board and serial port.

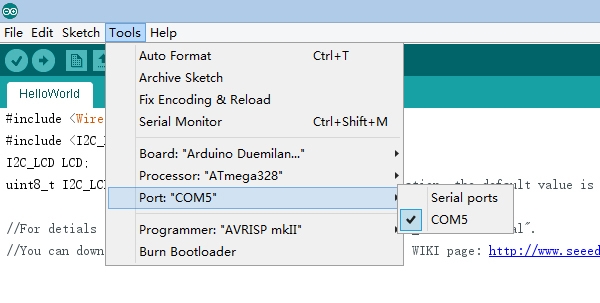

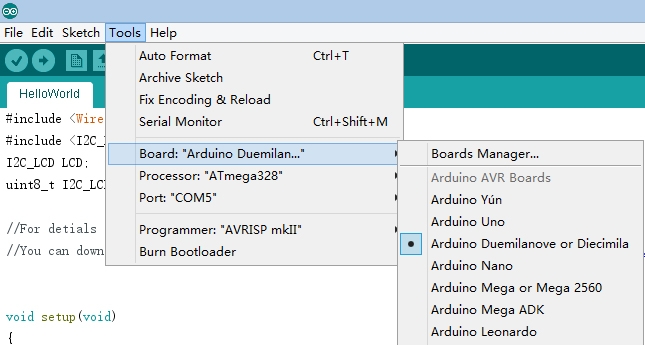

Select the board: Click Tools > Board > "Arduino Duemilanove or Diecimila"(Seeeduino V3.0 Or early version), "Arduino Uno"(Seeeduino Lotus or Seeeduino V4.0).

Select the COM: Click Tools -> Serial Port -> COMX(which connected with your board.)

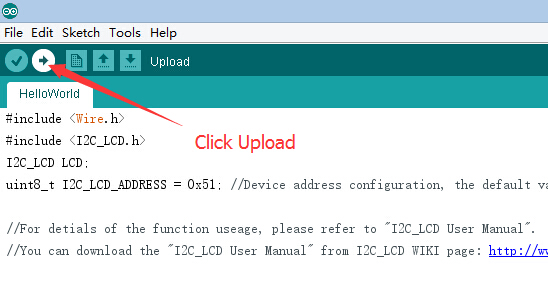

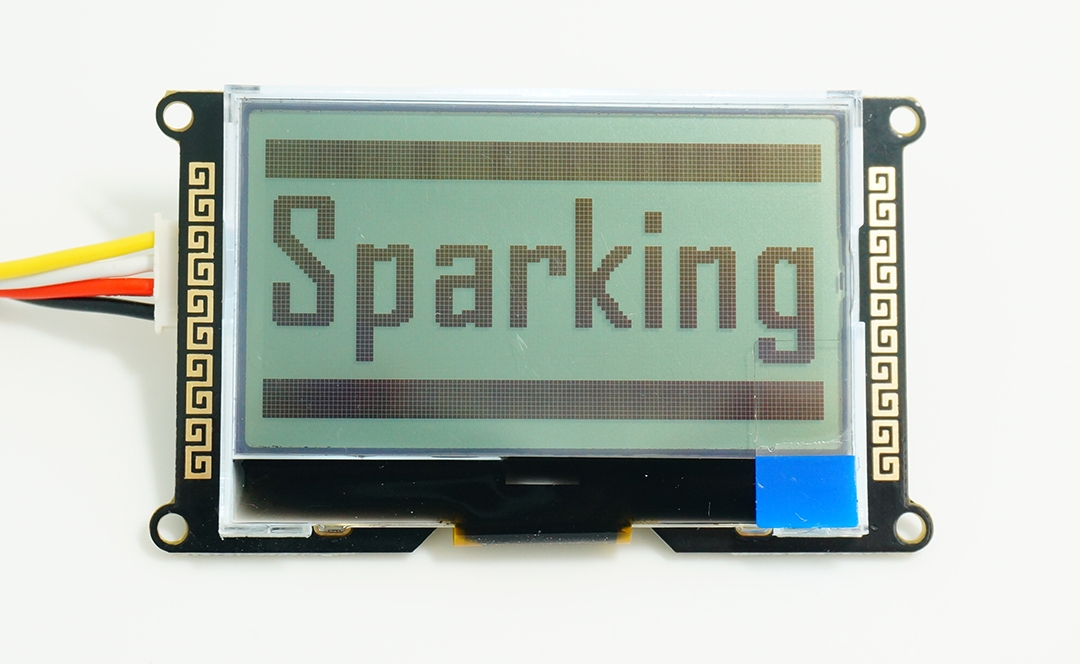

Step 6: Upload the program and enjoy yourself!

PS:

  1. If you encounter other problems during the use, please refer to the User Manual for help. If you can't solve it, please contact us.

Technical support: Joney.s@foxmail.com

Resources

Keeping update the latest version.

enter image description here

enter image description here
enter image description here
enter image description here
enter image description here
enter image description here
enter image description here
enter image description here

For more details about library install please refer to .

The , if you have any good idea of the code, you can pull to us.

http://www.arduino.cc/en/Guide/Liaries
repository of Arduino library hosted here
I2C_LCD Library
I2C_LCD User Manual EN
I2C_LCD User Manual 中文
BitmapConverter(ForWindows)
BitmapConverter(ForMacOS)
BitmapConverter(ForLinux)
I2C_LCD_SourceFile
Make it Now
Make it Now
Make it Now
Make it Now
Make it Now
enter image description here
enter image description here
enter image description here
enter image description here
enter image description here
