Grove OLED Display 0.96inch

Grove - OLED Display 0.96" module is an OLED monochrome 128×64dot matrix display module with Grove 4pin I2C Interface.Comparing to LCD, OLED screens are more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim / thin outline, wide viewing angle, wide temperature range, and low power consumption. It has bigger screen so that it can display more contents than the OLED 96×96.

Features

Grove compatible interface
Communicate Mode:I2C
Low power consumption
Display Color: White
Wide range of operating temperature:-20℃~70℃

Specifications

Items	Min	Norm	Max	Unit
Power Voltage (VCC)	3.3	5.0	5.5	V
Driver IC	-	SSD1308Z	-	-
Display Color	-	White	-	-
Dot Matrix	-	128×64	-	-
Panel Size	-	26.7(W)×19.26(H)	-	mm
Active Area	-	21.74(W)×11.175 (H)	-	mm
Dot Pitch	-	0.17(W)×0.175 (H)	-	mm
Dot Size	-	0.15(W)×0.15 (H)	-	mm
Wide range of operating temperature	-	-20~70	-	℃

Platforms Supported

Getting Started

With Arduino

Connection

The OLED128*64 uses all the pins of SSD1308 chip, the default original point is on the top left corner. You can also change the original point by adjusting the program and in order to display your desired patterns. For more details, please refer SSD1308_1.0.pdf and LY190-128064.pdf.

Here we demonstrate how to display "Hello World" on the screen.

First of all, We need to prepare the below stuffs:

Seeeduino V4

Grove - OLED Display 0.96inch

Base Shield

Get ONE Now

Plug the Grove OLED Display 128*64 onto the I2C port on Grove Base Shield, and then plug the Base Shield into Seeeduino;

Software

Download Seeed OLED Display 128*64 library
Please follow how to install an arduino library procedures to install library.

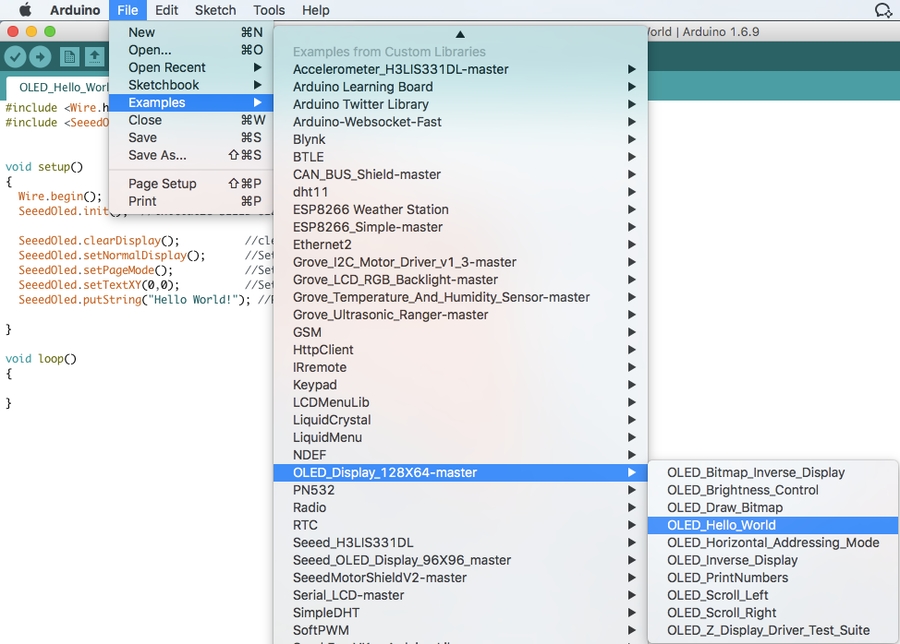

Open the code directly by the path: File -> Example ->OLED_Display_128X64-master->OLED_Hello_World.

#include <Wire.h>
#include <SeeedOLED.h>


void setup()
{
  Wire.begin();
  SeeedOled.init();  //initialze SEEED OLED display

  SeeedOled.clearDisplay();          //clear the screen and set start position to top left corner
  SeeedOled.setNormalDisplay();      //Set display to normal mode (i.e non-inverse mode)
  SeeedOled.setPageMode();           //Set addressing mode to Page Mode
  SeeedOled.setTextXY(0,0);          //Set the cursor to Xth Page, Yth Column
  SeeedOled.putString("Hello World!"); //Print the String

}

void loop()
{

}

Upload the code.
We can see "hello world" on screen.

With Beaglebone Green

To begin editing programs that live on BBG, you can use the Cloud9 IDE and refer Beaglebone Green Wiki.

Here are the steps how to display "Hello World" on OLED.

Step1: Click the "+" in the top-right to create a new file.

Step2:Copy and paste the following code into the new tab

from Adafruit_I2C import Adafruit_I2C
import time
import math


Oled = Adafruit_I2C(0x3c)
Command_Mode=0x80
Data_mode=0x40

grayH= 0xF0
grayL= 0x0F
Normal_Display_Cmd=0xA4

BasicFont = [[0 for x in xrange(8)] for x in xrange(10)]
BasicFont=[[0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00],
[0x00,0x00,0x5F,0x00,0x00,0x00,0x00,0x00],
[0x00,0x00,0x07,0x00,0x07,0x00,0x00,0x00],
[0x00,0x14,0x7F,0x14,0x7F,0x14,0x00,0x00],
[0x00,0x24,0x2A,0x7F,0x2A,0x12,0x00,0x00],
[0x00,0x23,0x13,0x08,0x64,0x62,0x00,0x00],
[0x00,0x36,0x49,0x55,0x22,0x50,0x00,0x00],
[0x00,0x00,0x05,0x03,0x00,0x00,0x00,0x00],
[0x00,0x1C,0x22,0x41,0x00,0x00,0x00,0x00],
[0x00,0x41,0x22,0x1C,0x00,0x00,0x00,0x00],
[0x00,0x08,0x2A,0x1C,0x2A,0x08,0x00,0x00],
[0x00,0x08,0x08,0x3E,0x08,0x08,0x00,0x00],
[0x00,0xA0,0x60,0x00,0x00,0x00,0x00,0x00],
[0x00,0x08,0x08,0x08,0x08,0x08,0x00,0x00],
[0x00,0x60,0x60,0x00,0x00,0x00,0x00,0x00],
[0x00,0x20,0x10,0x08,0x04,0x02,0x00,0x00],
[0x00,0x3E,0x51,0x49,0x45,0x3E,0x00,0x00],
[0x00,0x00,0x42,0x7F,0x40,0x00,0x00,0x00],
[0x00,0x62,0x51,0x49,0x49,0x46,0x00,0x00],
[0x00,0x22,0x41,0x49,0x49,0x36,0x00,0x00],
[0x00,0x18,0x14,0x12,0x7F,0x10,0x00,0x00],
[0x00,0x27,0x45,0x45,0x45,0x39,0x00,0x00],
[0x00,0x3C,0x4A,0x49,0x49,0x30,0x00,0x00],
[0x00,0x01,0x71,0x09,0x05,0x03,0x00,0x00],
[0x00,0x36,0x49,0x49,0x49,0x36,0x00,0x00],
[0x00,0x06,0x49,0x49,0x29,0x1E,0x00,0x00],
[0x00,0x00,0x36,0x36,0x00,0x00,0x00,0x00],
[0x00,0x00,0xAC,0x6C,0x00,0x00,0x00,0x00],
[0x00,0x08,0x14,0x22,0x41,0x00,0x00,0x00],
[0x00,0x14,0x14,0x14,0x14,0x14,0x00,0x00],
[0x00,0x41,0x22,0x14,0x08,0x00,0x00,0x00],
[0x00,0x02,0x01,0x51,0x09,0x06,0x00,0x00],
[0x00,0x32,0x49,0x79,0x41,0x3E,0x00,0x00],
[0x00,0x7E,0x09,0x09,0x09,0x7E,0x00,0x00],
[0x00,0x7F,0x49,0x49,0x49,0x36,0x00,0x00],
[0x00,0x3E,0x41,0x41,0x41,0x22,0x00,0x00],
[0x00,0x7F,0x41,0x41,0x22,0x1C,0x00,0x00],
[0x00,0x7F,0x49,0x49,0x49,0x41,0x00,0x00],
[0x00,0x7F,0x09,0x09,0x09,0x01,0x00,0x00],
[0x00,0x3E,0x41,0x41,0x51,0x72,0x00,0x00],
[0x00,0x7F,0x08,0x08,0x08,0x7F,0x00,0x00],
[0x00,0x41,0x7F,0x41,0x00,0x00,0x00,0x00],
[0x00,0x20,0x40,0x41,0x3F,0x01,0x00,0x00],
[0x00,0x7F,0x08,0x14,0x22,0x41,0x00,0x00],
[0x00,0x7F,0x40,0x40,0x40,0x40,0x00,0x00],
[0x00,0x7F,0x02,0x0C,0x02,0x7F,0x00,0x00],
[0x00,0x7F,0x04,0x08,0x10,0x7F,0x00,0x00],
[0x00,0x3E,0x41,0x41,0x41,0x3E,0x00,0x00],
[0x00,0x7F,0x09,0x09,0x09,0x06,0x00,0x00],
[0x00,0x3E,0x41,0x51,0x21,0x5E,0x00,0x00],
[0x00,0x7F,0x09,0x19,0x29,0x46,0x00,0x00],
[0x00,0x26,0x49,0x49,0x49,0x32,0x00,0x00],
[0x00,0x01,0x01,0x7F,0x01,0x01,0x00,0x00],
[0x00,0x3F,0x40,0x40,0x40,0x3F,0x00,0x00],
[0x00,0x1F,0x20,0x40,0x20,0x1F,0x00,0x00],
[0x00,0x3F,0x40,0x38,0x40,0x3F,0x00,0x00],
[0x00,0x63,0x14,0x08,0x14,0x63,0x00,0x00],
[0x00,0x03,0x04,0x78,0x04,0x03,0x00,0x00],
[0x00,0x61,0x51,0x49,0x45,0x43,0x00,0x00],
[0x00,0x7F,0x41,0x41,0x00,0x00,0x00,0x00],
[0x00,0x02,0x04,0x08,0x10,0x20,0x00,0x00],
[0x00,0x41,0x41,0x7F,0x00,0x00,0x00,0x00],
[0x00,0x04,0x02,0x01,0x02,0x04,0x00,0x00],
[0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00],
[0x00,0x01,0x02,0x04,0x00,0x00,0x00,0x00],
[0x00,0x20,0x54,0x54,0x54,0x78,0x00,0x00],
[0x00,0x7F,0x48,0x44,0x44,0x38,0x00,0x00],
[0x00,0x38,0x44,0x44,0x28,0x00,0x00,0x00],
[0x00,0x38,0x44,0x44,0x48,0x7F,0x00,0x00],
[0x00,0x38,0x54,0x54,0x54,0x18,0x00,0x00],
[0x00,0x08,0x7E,0x09,0x02,0x00,0x00,0x00],
[0x00,0x18,0xA4,0xA4,0xA4,0x7C,0x00,0x00],
[0x00,0x7F,0x08,0x04,0x04,0x78,0x00,0x00],
[0x00,0x00,0x7D,0x00,0x00,0x00,0x00,0x00],
[0x00,0x80,0x84,0x7D,0x00,0x00,0x00,0x00],
[0x00,0x7F,0x10,0x28,0x44,0x00,0x00,0x00],
[0x00,0x41,0x7F,0x40,0x00,0x00,0x00,0x00],
[0x00,0x7C,0x04,0x18,0x04,0x78,0x00,0x00],
[0x00,0x7C,0x08,0x04,0x7C,0x00,0x00,0x00],
[0x00,0x38,0x44,0x44,0x38,0x00,0x00,0x00],
[0x00,0xFC,0x24,0x24,0x18,0x00,0x00,0x00],
[0x00,0x18,0x24,0x24,0xFC,0x00,0x00,0x00],
[0x00,0x00,0x7C,0x08,0x04,0x00,0x00,0x00],
[0x00,0x48,0x54,0x54,0x24,0x00,0x00,0x00],
[0x00,0x04,0x7F,0x44,0x00,0x00,0x00,0x00],
[0x00,0x3C,0x40,0x40,0x7C,0x00,0x00,0x00],
[0x00,0x1C,0x20,0x40,0x20,0x1C,0x00,0x00],
[0x00,0x3C,0x40,0x30,0x40,0x3C,0x00,0x00],
[0x00,0x44,0x28,0x10,0x28,0x44,0x00,0x00],
[0x00,0x1C,0xA0,0xA0,0x7C,0x00,0x00,0x00],
[0x00,0x44,0x64,0x54,0x4C,0x44,0x00,0x00],
[0x00,0x08,0x36,0x41,0x00,0x00,0x00,0x00],
[0x00,0x00,0x7F,0x00,0x00,0x00,0x00,0x00],
[0x00,0x41,0x36,0x08,0x00,0x00,0x00,0x00],
[0x00,0x02,0x01,0x01,0x02,0x01,0x00,0x00],
[0x00,0x02,0x05,0x05,0x02,0x00,0x00,0x00]]

def oled_init():
    sendCommand(0xFD) # Unlock OLED driver IC MCU interface from entering command. i.e: Accept commands
    sendCommand(0x12)
    sendCommand(0xAE) # Set display off
    sendCommand(0xA8) # set multiplex ratio
    sendCommand(0x5F) # 96
    sendCommand(0xA1) # set display start line
    sendCommand(0x00)
    sendCommand(0xA2) # set display offset
    sendCommand(0x60)
    sendCommand(0xA0) # set remap
    sendCommand(0x46)
    sendCommand(0xAB) # set vdd internal
    sendCommand(0x01)
    sendCommand(0x81) # set contrasr
    sendCommand(0x53) # 100 nit
    sendCommand(0xB1) # Set Phase Length
    sendCommand(0X51)
    sendCommand(0xB3) # Set Display Clock Divide Ratio/Oscillator Frequency
    sendCommand(0x01)
    sendCommand(0xB9)
    sendCommand(0xBC) # set pre_charge voltage/VCOMH
    sendCommand(0x08) # (0x08);
    sendCommand(0xBE) # set VCOMH
    sendCommand(0X07) # (0x07);
    sendCommand(0xB6) # Set second pre-charge period
    sendCommand(0x01)
    sendCommand(0xD5) # enable second precharge and enternal vsl
    sendCommand(0X62) # (0x62);
    sendCommand(0xA4) # Set Normal Display Mode
    sendCommand(0x2E) # Deactivate Scroll
    sendCommand(0xAF) # Switch on display
    time.sleep(0.1)
    # delay(100);

    # Row Address
    sendCommand(0x75)    # Set Row Address
    sendCommand(0x00)    # Start 0
    sendCommand(0x5f)    # End 95


    # Column Address
    sendCommand(0x15)    # Set Column Address
    sendCommand(0x08)    # Start from 8th Column of driver IC. This is 0th Column for OLED
    sendCommand(0x37)    # End at  (8 + 47)th column. Each Column has 2 pixels(segments)

    # Init gray level for text. Default:Brightest White
    grayH= 0xF0
    grayL= 0x0F

def sendCommand(byte):
    Oled.write8(Command_Mode,byte)

def sendData(byte):
    Oled.write8(Data_mode,byte)

def multi_comm(commands):
    for c in commands:
        sendCommand(c)

def oled_clearDisplay():
    for j in range (0,48):
        for i in range (0,96):
            sendData(0x00)

def oled_setNormalDisplay():
    sendCommand(Normal_Display_Cmd)

def oled_setVerticalMode():
    sendCommand(0xA0)    # remap to
    sendCommand(0x46)    # Vertical mode

def oled_setTextXY(Row,Column):
    sendCommand(0x15)             # Set Column Address
    sendCommand(0x08+(Column*4))  # Start Column: Start from 8
    sendCommand(0x37)             # End Column
    # Row Address
    sendCommand(0x75)             # Set Row Address
    sendCommand(0x00+(Row*8))     # Start Row
    sendCommand(0x07+(Row*8))     # End Row

def oled_putChar(C):
    C_add=ord(C)
    if C_add<32 or C_add>127:     # Ignore non-printable ASCII characters
        C=' '
        C_add=ord(C)

    for i in range(0,8,2):
        for j in range(0,8):
            c=0x00
            bit1=((BasicFont[C_add-32][i])>>j)&0x01
            bit2=((BasicFont[C_add-32][i+1])>>j)&0x01
            if bit1:
                c=c|grayH
            else:
                c=c|0x00
            if bit2:
                c=c|grayL
            else:
                c=c|0x00
            sendData(c)

def oled_putString(String):
    for i in range(len(String)):
        oled_putChar(String[i])


if __name__=="__main__":
    oled_init()
    oled_setNormalDisplay()
    oled_setTextXY(0,0)
    oled_putString("Hello")
    time.sleep(10)
    #Oled.write8(Command_Mode,0xFD)
    #sendCommand(0xFD)
    print 'hello world'

Step3: Save the file by clicking the disk icon with with the .py extension.

Step4: Connect Grove - OLED to Grove I2C socket on BBG.

Step5: Run the code. We'll find that the Grove - OLED outputs "Hello World".

Resources

[Eagle] Grove-OLED128x64
[PDF] Grove-OLED128x64 Schematic
[PDF] Grove-OLED128x64 PCB
[Library] GitHub Library for OLED
[Datasheet] Resources of SSD1308_1.0.pdf
[Datasheet] Resources of LY190-128064.pdf
[Wiki] Beaglebone Green Wiki
