Grove System

What is the Grove System?

Grove is a modular, standardized connector prototyping system. Grove takes a building block approach to assembling electronics. Compared to the jumper or solder based system, it is easier to connect, experiment and build and simplifies the learning system, but not to the point where it becomes dumbed down. Some of the other prototype systems out there takes the level down to building blocks. Good stuff to be learned that way, but the Grove system allows you to build real systems. It requires some learning and expertise to hook things up.

The Grove system consists of a base unit (stem) and various modules (twigs) with standardized connectors. The people originating the Grove system (Seeedstudio) have tried to use "stems"and "twigs" as part of the Grove lexicon. After a short period of consideration, we are dropping those names. They just aren't needed and just confuse the issue.

The Base unit, generally a microprocessor, allows for easy connection of any input or output from the Grove modules. And every Grove module typically addresses a single function, such as a simple button or a more complex heart rate sensor.

You don't need a Base unit to connect up to Grove modules. You can use a cable (Grove to Pin Header Converter) to run from the pins on the Raspberry Pi or Arduino to the Grove connectors.

Grove Projects

Here are some project made with Grove for your reference, more projects please refer to Recipe or Instructables.

DIY a Humidifier

Personal Voice Assistant

Acrylic Monitor Stand

Sensor hub & Win10 IoT

Steam-punk Style Award

Plant Watering Device

Wi-Fi Speaker

DIY a toy car

Retro Wooden Lamp

Pokemon Go SAFETY BADGE

Make a Wooden Gun

Quality of Life Meter

Hackable RGB ornament

The Internet Of Led Wall

PI Game Box

Size of Grove

There're 5 size of Grove.

1X1

1X2

1X3

2X2

2X3

20x20mm

20x40mm

20x60mm

40x40mm

40x60mm

How to connect Grove to your board

If there's no Grove connector on your board, you need a Grove Expansion Board which to attach the Grove modules. The Grove Expansion Board provides the processing power, and the modules offer the input sensors and output actuators of your system. There are many Grove Expansion Board for different platform already, they include Arduino UNO, Particle Phone, BeagleBone board etc.

Arduino Base Shield

BeagleBone board

Arduino Mega

IOIO-OTG

Particle Photon

NodeMCU

!!!Note Arduino Base Shield works for:

Arduino UNO/Leonardo
Seeeduino V3/4/4.1/Lite/Clio/Lotus/Stalker
LinkIt ONE

Interface of Grove modules

You may notice that there're 4 color of the Grove cable.

pin 1 - Yellow (for example, SCL on I2C Grove Connectors)
pin 2 - White (for example, SDA on I2C Grove Connectors)
pin 3 - Red - VCC on all Grove Connectors
pin 4 - Black - GND on all Grove Connectors

There're mainly 4 type of Interface of Grove modules.

Digital

A digital Grove connector consists of the standard four lines coming into the Grove plug. The two signal lines are generically called D0 and D1. Most modules only use D0, but some do (like the LED Bar Grove display) use both. Often base units will have the first connector called D0 and the second called D1 and they will be wired D0/D1 and then D1/D2, etc.

Examples of Grove Digital modules are: Switch Modules, the Fan Module, and the LED Module. In Figure 8, you can see what the Grove connector looks like on the schematic for the LED Grove module. They range from the simple to the very complex.

Function

Note

pin1

Primary Digital Input/Output

pin2

Dn+1

Secondary Digital Input/Output

pin3

VCC

Power for Grove Module, 5V/3.3V

pin4

GND

Ground

Grove Analog

An Grove Analog connector consists of the standard four lines coming into the Grove plug. The two signal lines are generically called A0 and A1. Most modules only use A0. Often base units will have the first connector called A0 and the second called A1 and they will be wired A0/A1 and then A1/A2, etc.

Function

Note

pin1

Primary Analog Input

pin2

An+1

Secondary Analog Input

pin3

VCC

Power for Grove Module, 5V/3.3V

pin4

GND

Ground

Grove UART

The Grove UART module is a specialized version of a Grove Digital Module. It uses both Pin 1 and Pin 2 for the serial input and transmit. The Grove UART plug is labeled from the base unit point of view. In other words, Pin 1 is the RX line (which the base unit uses to receive data, so it is an input) where Pin 2 is the TX line (which the base unit uses to transmit data to the Grove module).

Function

Note

pin1

Serial Receive

pin2

Serial Transmit

pin3

VCC

Power for Grove Module, 5V/3.3V

pin4

GND

Ground

Grove I2C

Those long term readers of this blog know that our favourite devices are I2C sensors. There are many types of I2C Grove sensors available. Most are 5V/3.3V devices, but there are a few that are only 3.3V or 5.0V. You need to check the specifications.

The Grove I2C connector has the standard layout. Pin 1 is the SCL signal and Pin 2 is the SDA signal. Power and Ground are the same as the other connectors. This is another special version of the Grove Digital Connector. In fact, often the I2C bus on a controller (like the ESP8266, Raspberry Pi and the Arduino) just uses Digital I/O pins to implement the I2C bus. The pins on the Raspberry Pi and Arduino are special with hardware support for the I2C bus.

Function

Note

pin1

SCL

I2C Clock

pin2

SDA

I2C Data

pin3

VCC

Power for Grove Module, 5V/3.3V

pin4

GND

Ground

Grove Cables

Normal Grove Cable

There're 4 size of Grove cables for your projects, the length is consist of 5cm, 20cm, 30cm, 40cm as well as 50 cm. As shown below.

5cm

20 cm

30 cm

40 cm

50 cm

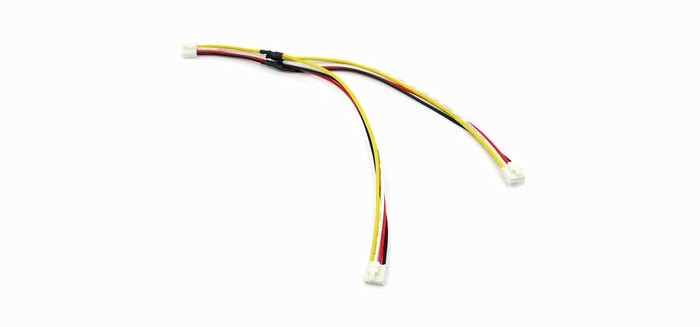

Grove - Branch Cable

Grove Branch Cable is a cable used in the Grove system. It consists of three male-type latching connectors and four color-coded wires. Grove Branch Cables can be used to support daisy-chaining multiple Grove devices to a Grove shield. Typically, one end is connected to a Grove shield, and the second and third connectors are attached to two Grove devices.

As with other members of the Grove cable family, the male connectors are keyed. This means that they are shaped uniquely and will fit one and only one way into their matching connectors on shields and devices. Also, when attaching the connectors to shields or devices, be sure to press firmly to mate the male connectors on the Grove Branch Cable with the female receptacles on the Grove shield or Grove devices. Since Grove Branch Cables have latches (sometimes referred to as "buckles" or "buckled cables"), when the latch closes, you will hear a small sound and should see the latch close over its corresponding part. These latches (or buckles) improve connections, and are especially handy in high-vibration or production environments, since some force must be used when disconnecting the cable. When moving your Grove device, or changing it, you must also apply a small bit of pressure to release the latch on the Grove Branch Cable connector, and then pull to remove the it from the receptacle or socket.

Use extra care if connecting multiple devices using the Grove Branch Cable. Be aware that the analog or digital pin on the Grove Shield will be shared by both Grove devices. Such configurations may be inappropriate for two analog devices. Using a Grove Branch Cable to connect an analog and a digital Grove device may not work at all.

Sample applications include:

Connecting or daisy chaining two or more I2C devices. Multiple branch cables can be used to extend I2C busses.
Connecting two devices that need to work at the same time. For example, a LED and a Relay could be connected to a Grove Shield using a single Grove Branch Cable. It would then be possible to turn both the LED and the Relay off or on simultaneously since the two devices would be controlled by a single digital pin.

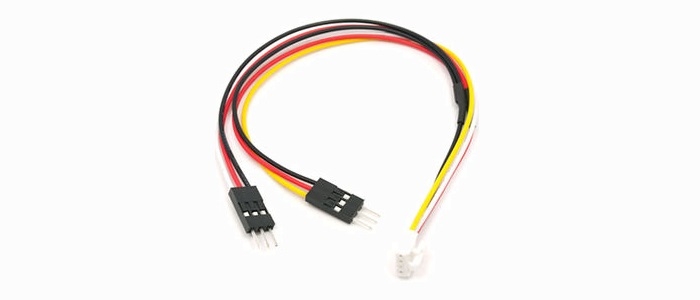

Grove - Branch Cable for Servo

Grove Branch Cable for Servos are another type of Grove Cable, and are primarily used to connect one or two servos to your project. They consist of three connectors: one keyed four pin male connector suitable for connecting to a Grove Shield, and two three pin male post-type connectors. In this configuration, power and ground (pins 3 and 4 from the four pin male) are carried to both three pin male connectors. Pin 1 (yellow)of the four pin connector is connected to one of the pins of the Arduino capable of PWM, and is carried out to one of the three pin male post connectors. Pin 2 (white wire) of the four pin connector is also connected to a second PWM-capable pin of the Arduino, and is carried out to the second three pin male post connector.

The four pin keyed connector of the Grove Branch Cable for Servos will usually be connected to a Grove Shield digital socket such as D2-D9. When connecting servos, make a note of the wire color of the digital PWM cable (yellow or white) to know which digital pin corresponds to the servo input.

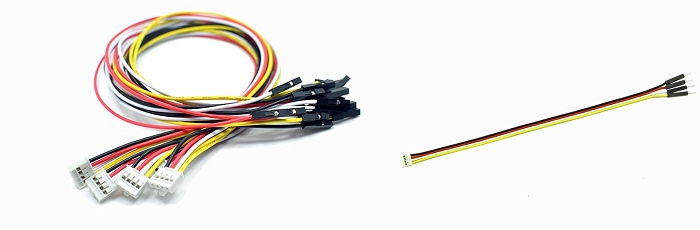

Grove to 4pin Female/Male Jumper

You can use it for:

Connect Grove device to the other MCUs, such as you want to connect Grove - Light Sensor to Raspberry Pi.
Use Base Shield to control some non-grove device

Link to buy a cable

Cable

Link

Branch Cable

Branch Cable for Servo

Grove to 4Pin Female

Grove to 4Pin Male

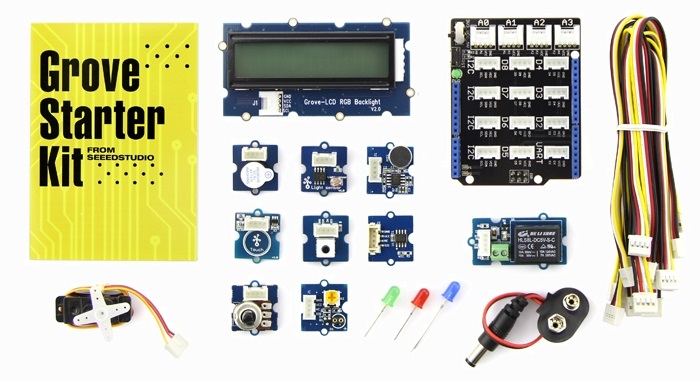

Grove Starter Kit

We designed many kits for the beginner. Normally, a Grove starter kit include a Grove Extension Board, many Grove modules and a user manual, which include many lessons for the beginners. If you want to start a platform or just learn about electronic, Grove Starter kit is your best choice.

There are many kits for different platform.

Kit Name

Link

Grove - Starter Kit for Arduino

Grove Starter Kit for mbed

Grove Starter Kit for LinkIt ONE

Grove Starter Kit for LaunchPad

Grove Starter Kit for Photon

Grove Starter Kit for BeagleBone Green

Grove Starter Kit for LinkIt 7688 Duo

Grove Starter Kit for 96Boards

Grove Starter kit for Arduino&Genuino 101
