Grove - Recorder is based on the ISD1820P chip, and can record 8-20 secs of audio. It offers true single-chip voice recording and provides non-volatile storage. The recording time can be varied by changing the sampling resistor (R6) on the module's PCB. By default, the resistor on-board has a value of 100KΩ and thus the module offers a default recording time of 10 secs. The audio recording can be directly controlled by the on-board push button or by a micro-controller such as a .
Low power consumption
Non-volatile storage
User-friendly operation
Replace a single resistor to change recording duration and sampling frequency
Add a resistor to set play cycle mode

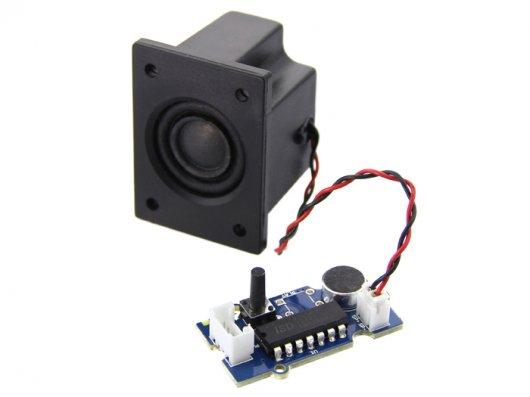

Ships with and connects to an 8Ω/2W mini-speaker (as shown in the picture)

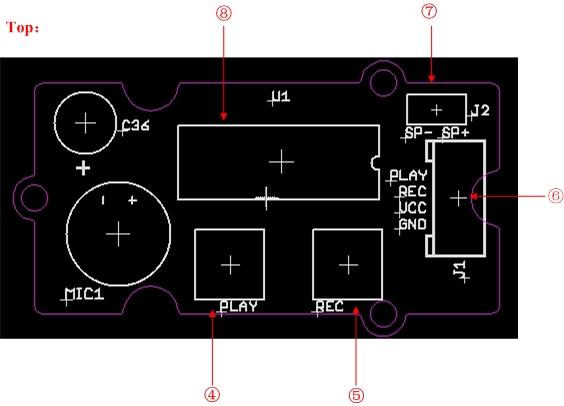

â‘ LED IndicatorModes:Record: Red LED light stays ON from the beginning of the recording duration until the end.Playback: Red LED flashes to signal end of audio playback.â‘¡ Sampling resistorYou can set the recording duration and sampling rate by change sampling resistor (R6) based on the following table:
ROSC
Duration
Sampling Frequency
Input Bandwidth
80 KΩ
8 secs
8.0 KHz
3.4 KHz
100 KΩ (default)
10 secs
6.4 KHz
2.6 KHz
120 KΩ
12 secs
5.3 KHz
2.3 KHz
160 KΩ
16 secs
4.0 KHz
1.7 KHz
200 KΩ
20 secs
3.2 KHz
1.3 KHz
③ Playback resistorModes:Cycle: R8 is place 0Ω resistorSingle: R8 is not place resistor④ Play KeyNot used currently⑤ REC Key⑥ Grove Interface⑦ Loudspeaker Interface⑧ REC IC：ISD1820P
Follow these steps to build a sample circuit using the Grove - Recorder module:
Power up the circuit.
Press and hold down the REC button on the recorder module and start recording the audio. The on-board red LED will turn ON. Continue to record the audio until the red LED gets turned OFF. The LED getting turned OFF is indicative of the fact that the recording time is now over.
To override the recorded audio, simply repeat step 3 above. The new message will override the old one.
Uses Standard 4-pin to connect to other modules or a micro-controller such as the .
Connect the recorder module to the output side of the Grove circuit (to the right of the power module). On the input side of the circuit, you may use a or a module.
To play back the audio segment that has been recorded, press and hold down the . You should now hear the audio segment you recorded being played back. Continue to press and hold down the until you see the red LED on-board the recorder module flash. The flash indicates that playback of audio is now complete. If instead of a , you are using a , simply move the slider from GND to VCC position to hear the playback at any time.
Below is an illustration of a Grove circuit built using the power module:
If you do not have the Grove - USB Power module, use the module instead.
This module is available as part of the following :
Alternatively, it can be bought stand-alone at the .
