Grove Base Cape for BeagleBone v2

PreviousGrove Base Booster PackNextGrove Base HAT

Last updated 5 years ago

Was this helpful?

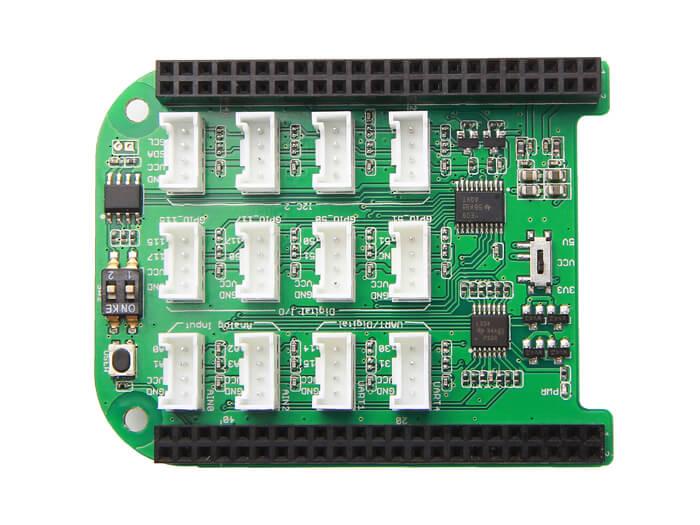

Grove Base Cape for BeagleBone v2 is a expansion board for BeagleBone platform. This cape makes it convenient to connect many transducers (sensors and actuators) available as Grove modules with BeagleBone platform. The boards also includes a 256kb Serial EEPROM. It will save a lot effort for you in product development process with soldering-free design and compact plug-and-play ports.

The cape provides 12 easy-to-use Grove connectors to do plug-and-play with the big family of Grove modules. The connectors include 2x UART, 2x ADC, 4x Digital I/O and 4x I2C that interface to the pins on your Beaglebone board, offering almost everything you need. There are two switches used to reset the I2C address in case of address conflicts. The board also integrates a switch for voltage transition - from a normal 5V to 3.3V and vice versa.

Features

  • Easier connection between your BeagleBone and Grove Modules.

  • Soldering-free

  • Saves your time and money

Specifications

Output voltage

3.3 V or 5 V(switchable)

Maximum output current

500 mA at 3.3V, 500 mA at 5V

Digital Grove Ports

6 , share same pins with UART1(labeled) and UART4(labeled)

Analog Grove Ports

2

I2C Grove Ports

4

UART Grove Ports

2 (UART1, UART4)

EEPROM

256kb (Model: CAT24C256WI)

Dimensions

70 mm(Length) × 50 mm(width)

Parts list

Parts name

Quantity

Grove Base Cape for BeagleBone v2

1 PCS

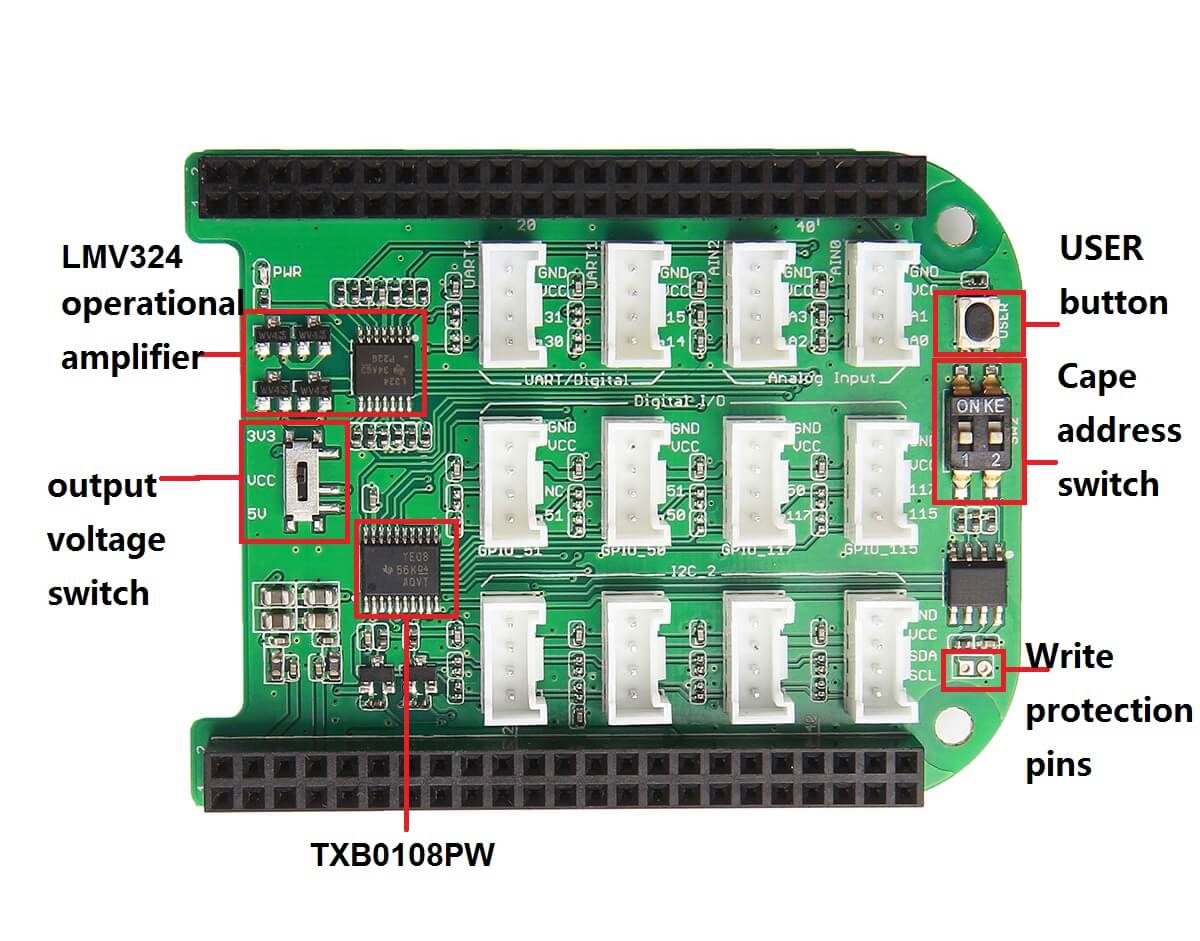

Hardware overview

Output voltage switch, is a switch to control output voltage to Grove ports.

USER button, is a button that can be used as BeagleBone USER button.

Write protection pin, is used to disable write protection of EEPROM of a cape if those pins are connected. By default, it is not connected.

Note you can find two notch(round corner with holes) on one end of Grove Base Cape for BeagleBone v2.0. This end corresponds to the end with same notch on BeagleBone Green. You can use this notches to ensure proper orientation.

Get started

Suggested reading

Materials required

  • Grove Base Cape for BeagleBone v2 × 1

  • USB cable (type A to type B, for Arduino) × 1 or USB cable (Type-A to micro Type-B, for Seeeduino) × 1

Coding work

var b = require('bonescript');
b.pinMode('P9_16', b.INPUT);//GPIO 51 correspond to P9_16. More details at http://beagleboard.org/Support/bone101/#headers

setInterval(check,1000);

function check(){
    b.digitalRead('P9_16', checkButton);
}

function checkButton(x) {
    console.log(x.value);
    if(x.value == 1){
        console.log("you are pressing Grove button");
    }
    else{
        console.log("you are not pressing Grove button");
    }
}

4.Click Run in Cloud9 IDE to run the program on BeagleBone Green.

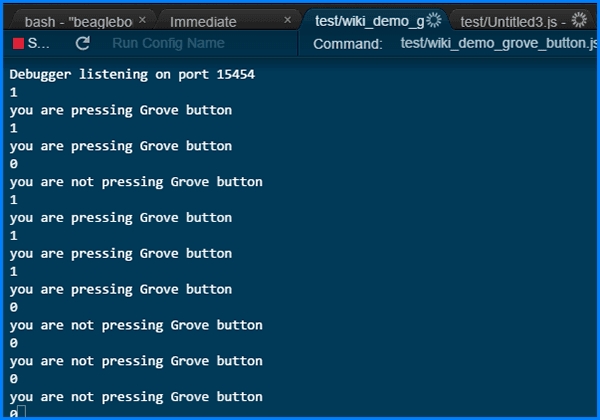

5.Wait for about 10 seconds to view the output at the bottom of Cloud9 IDE. The output probably looks like the following screen-shot:

Resources

Cape address switch, is a switch to choose cape address (only useful when multiple capes are attached) to avoid I2C address collision. For details about using more capes, please visit and . You can use this switch to choose address from 00(binary, pulled down for factory setttings) to 11(binary, on Grove Base Cape for BeagleBone v2) which correspond to 0x54 to 0x57 for all capes.

LMV324 operational amplifier , is a low-voltage rail-to-rail output operational amplifiers to control analog voltage.

TXB0108PW, is an 8-bit bidirectional voltage-level translator. .

In this section, we will show you a basic example to use this board. You can find more demos at page. Just append Grove Base Cape for BeagleBone v2 to those projects to make wire connection convenient.

× 1

(fully compatible with BeagleBone Black without HDMI output)

× 1

1.Connect BeagleBone Green to Your PC or MAC by USB cable. Click to Open Cloud9 IDE. </dd></dl> 2.Connect Grove - Button(P) to Grove Base Cape for BeagleBone v2 with Grove cable. Plug Grove cable to GPIO pin 51. </dd></dl> 3.Copy following code to Cloud9, save it to a .js file.

More demos at and

http://beagleboard.org/Support/bone101/#capes
http://elinux.org/BeagleBone_Community#Capes
Read more
Read more
BeagleBone Recipes
BeagleBone Green
BeagleBone community
BeagleBone 101
BoneScript
Grove - Button
BeagleBone Green
Grove cable
EAGLE Schematic & PCB files and PDF format Schematic
BeagleBone Green
BeagleBone community
BeagleBone 101
BoneScript
Cloud9
TXB0108PW datasheet
LMV324 datasheet
http://www.seeedstudio.com/recipe/index.php?query=beaglebone
http://www.seeedstudio.com/recipe/index.php?query=beaglebone
Grove system
http://192.168.7.2:3000/ide.html
