Grove Starter Kit for LinkIt ONE

PreviousGrove SPDT Relay 30ANextGrove Starter Kit for mbed

Last updated 5 years ago

Was this helpful?

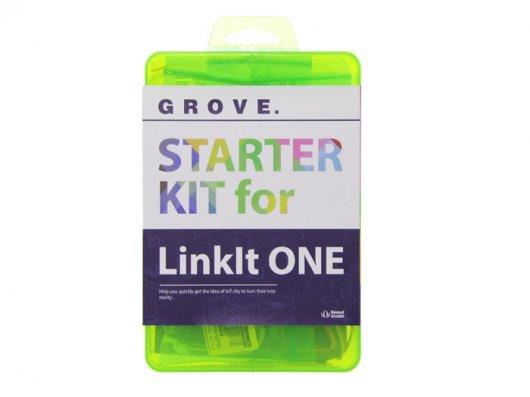

Grove - Starter Kit for LinkIt ONE is a toolkit for building your applications quicker and easier with LinkIt ONE development platform. With this kit, you can concentrate just on design process for your projects which will save you lots for time or expenses. It consist of the most popular modules for build IoT (Internet of Things) applications such as .

Features

  • Minimize efforts for your applications on LinkIt ONE platform.

  • Make building process of your projects easier.

  • Cut down your expense by including typical and popular modules.

Specifications

Please refer to each module's specifications:

Application ideas

Note that the ideas listed in this section are only some clues to this kit's massive applications.

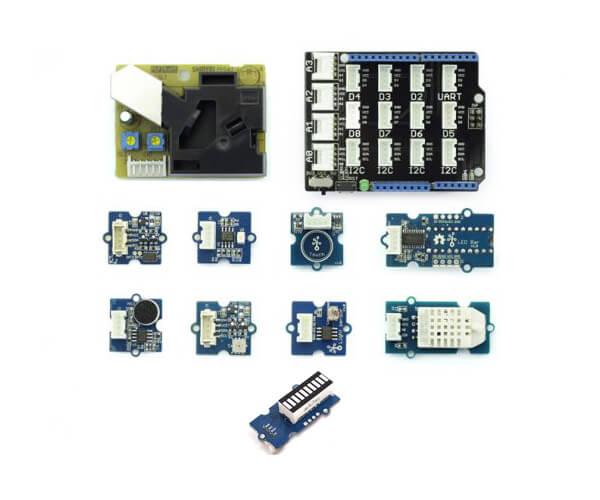

Hardware Overview

Grove Touch Sensor

This "button" can sense the touch of your fingers.

Grove Sound Sensor

This is a sensor to evaluate the intensity of sound.

Grove - Light Sensor v1.2

This is a sensor that detects the light level in daily occasions

Grove Servo

This is an actuator whose position can be precisely controlled.

Grove Dust Sensor

This sensor can measure air quality.

Grove Temperature & Humidity Sensor Pro

It has more complete and accurate performance than the basic version. The detecting range of this sensor is 5% RH - 99% RH, and -40°C - 80°C.

Grove UV Sensor

This sensor is used for detecting the intensity of incident ultraviolet (UV) radiation.

Grove - Barometer Sensor (BMP280)

This sensor can is used for detecting the atmospheric pressure and temperature.

Grove 3-Axis Digital Accelerometer (±16g)

This is a high resolution digital accelerometer providing you at max 3.9mg/LSB resolution and large ±16g measurement range.

Grove Led Bar

Grove LED Bar is comprised of a 10 segment LED, you can use it as an indicator.

Grove Base Shield

Base Shield is an interface between Arduino and Grove modules. There are 16 Grove sockets on the base shield, whichcan be divided into three deferent functional areas: digital ports (8), analog ports (4), and I2C ports (4).

Part list

Get started

Note that this section only shows you how to build basic development environment.

Demos

Note that this section will show you a demo which implemented some realistic functions.

Resources

!!!Tip More details about Grove modules please refer to

You can build and other funny applications.

for LinkIt ONE.

Find the complete recipe here:

Grove System
Grove - Dust Sensor
Grove - Temperature and Humidity Sensor Pro
Grove - Sound Sensor
Grove - UV Sensor
Grove - Barometer Sensor (BMP280)
Grove - Light Sensor v1.2
Grove - 3-Axis Digital Accelerometer(±16g)
Grove - LED Bar
Grove - Servo
Grove - Touch Sensor
Grove - Base shield v2
secret box
Parts List of Grove Starter Kit for LinkIt ONE
Guide on build basic development environment
Secret_Box
Manual for Grove Starter Kit for LinkIt ONE
Base Shield
