# Grove AND

![](https://github.com/SeeedDocument/Grove-AND/raw/master/img/AND_photo1.jpg)

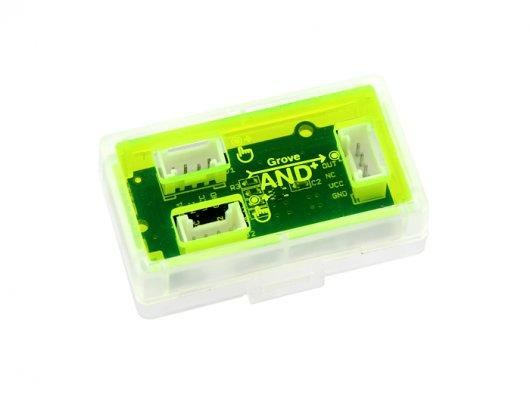

This module provides the function of a [logical AND gate](http://en.wikipedia.org/wiki/AND_gate). It is based on the 74HC1G08 chip, which is a high-speed Si-gate CMOS device that provides a 2-input AND function. The Grove - AND module therefore has two inputs on the left and one output on the right. The output is HIGH only when all the input signals are HIGH.

\[![](https://github.com/SeeedDocument/Seeed-WiKi/raw/master/docs/images/300px-Get_One_Now_Banner-ragular.png)]\(<https://www.seeedstudio.com/Mixer-Pack-V2-(Electronic-blocks%2Cwithout-Arduino%2Cplug-and-play-system)-p-1867.html>)

## Features

* Simple AND gate function with two inputs and a single output
* Makes integrating a Logical AND gate in your circuit a breeze
* Uses Standard 4-pin [Grove Cables](https://app.gitbook.com/GROVE_System#Grove_Cables) to connect to other [Grove](https://app.gitbook.com/Grove) modules

## Usage

* See [Grove - AND module typical usage](https://app.gitbook.com/GROVE_MIXER_PACK_V2#Grove-AND_module)

## See also

* [Grove - OR](https://app.gitbook.com/Grove-OR)
* [Grove - NOT](https://app.gitbook.com/Grove-NOT)

## Availability

This [Grove](https://app.gitbook.com/Grove) module is available as part of the following [Grove Kit Series](https://app.gitbook.com/GROVE_System#GROVE_Kit_Series):

* [Grove Mixer Pack V2](https://app.gitbook.com/GROVE_MIXER_PACK_V2)
* [Grove Mixer Pack](https://app.gitbook.com/Grove-Mixer_Pack)

Note that this Grove - AND module is sold only as part of the above mentioned packs and is not available stand-alone from the [Seeed Studio Bazaar](http://www.seeedstudio.com/depot/).

## Resources

* [Grove - AND v2.0 Source Files](https://github.com/SeeedDocument/Grove-AND/raw/master/res/Grove-AND_v2.0_Eagle.zip)


---
