# Grove NOT

![](https://github.com/SeeedDocument/Grove-NOT/raw/master/img/NOT_photo1.jpg)

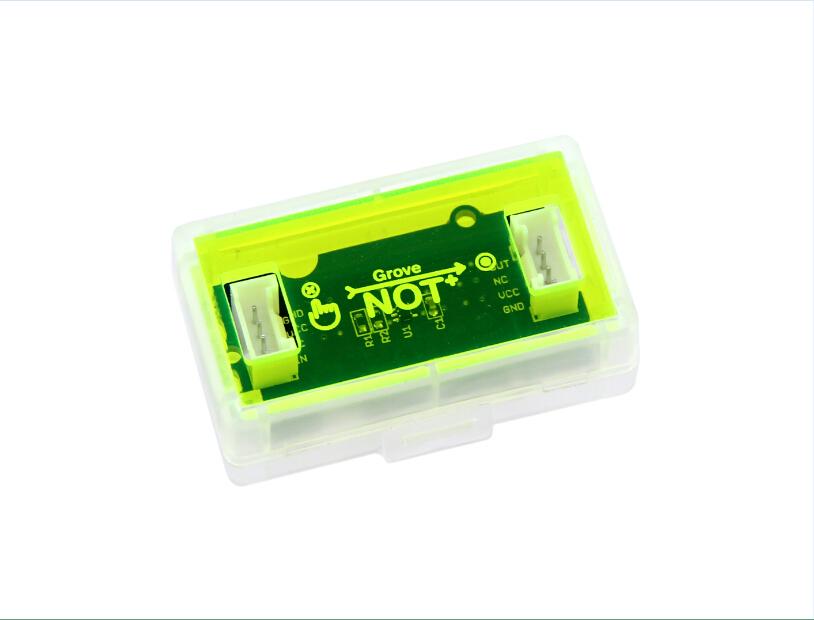

This [Grove](https://app.gitbook.com/Grove) module provides the function of a [logical NOT gate](http://en.wikipedia.org/wiki/Inverter_\(logic_gate\)). It is based on the 74HC1G04GW chip. The 74HC1G04GW is a high-speed Si-gate CMOS device that provides the inverting buffer. The NOT module has one input on the left and one output on the right. When the input signal is HIGH, output signal is LOW. When the input signal is LOW, output signal is HIGH.

\[![](https://github.com/SeeedDocument/Seeed-WiKi/raw/master/docs/images/300px-Get_One_Now_Banner-ragular.png)]\(<https://www.seeedstudio.com/Mixer-Pack-V2-(Electronic-blocks%2Cwithout-Arduino%2Cplug-and-play-system)-p-1867.html>)

## Features

* Simple NOT gate function with one input and one output
* Makes integrating a Logical NOT in your circuit a breeze
* Uses Standard 4-pin [Grove Cables](https://app.gitbook.com/GROVE_System#Grove_Cables) to connect to other [Grove](https://app.gitbook.com/Grove) modules

## Usage

* See the [ Glow-in-the-dark LED String Lights](https://app.gitbook.com/GROVE_MIXER_PACK_V2#Glow_in_the_Dark_String_Lights) example on the [ Grove Mixer Pack V2](https://app.gitbook.com/GROVE_MIXER_PACK_V2) wiki page for how to build a circuit that uses NOT Logic.
* Also see [Grove - NOT module typical usage](https://app.gitbook.com/GROVE_MIXER_PACK_V2#Grove-NOT_module)

## See also

* [Grove - OR](https://app.gitbook.com/Grove-OR)
* [Grove - AND](https://app.gitbook.com/Grove-AND)

## Availability

This [Grove](https://app.gitbook.com/Grove) module is available as part of the following [Grove Kit Series](https://app.gitbook.com/GROVE_System#GROVE_Kit_Series):

* [Grove Mixer Pack V2](https://app.gitbook.com/GROVE_MIXER_PACK_V2)
* [Grove Mixer Pack](https://app.gitbook.com/Grove-Mixer_Pack)

Note that this Grove - NOT module is sold only as part of the above mentioned packs and is not available stand-alone from the [Seeed Studio Bazaar](http://www.seeedstudio.com/depot/).

## Resources

* [Grove - NOT v2.0 Source (Eagle files)](https://github.com/SeeedDocument/Grove-NOT/raw/master/res/Grove-NOT_v2.0_Eagle.zip)
