Grove Wrapper

PreviousGrove Toy KitNextGrovePi Plus

Last updated 5 years ago

Was this helpful?

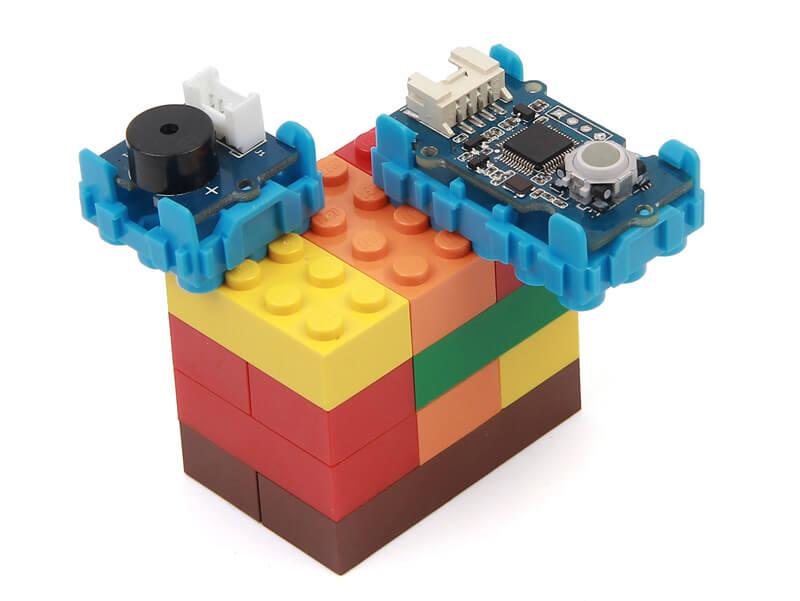

Grove - Wrapper is a kind of wrapper to fix and protect Grove modules. It will save you a lot of work on aligning your modules, and it will easy for you to show your project. For example, it will simpler to take pictures for showing your product on the Internet, and it will give a clear and clean scene if you use Grove - Wrapper to demo your project. What is more, it is expandable for Lego, mechanical parts, and so on, this will introduce more flavor into your works and make your project adapt to various circumstances. The design of Grove - Wrapper also make it easy to assemble and disassemble modules.

!!!Note

  • Around 85% of all Grove modules is supported by Grove - Wrapper.

  • Grove - Wrapper series have two size of wrappers, each gets four colors, and there are totally eight SKUs that are listed at section.

Features

  • Flex fastener to install and replace Grove modules conveniently.

  • Always keep your project safe.

  • Half-open space, no disruption for using Grove modules.

  • Compatible with Lego and Makeblock modules that will make your project adapting and interesting.

  • Support being fastened with screws (M2, M4).

  • Mutual-connect-able like Lego modules does.

  • Colorful wrappers.

Applications

Specification

Dimension(big one)

25 × 25 × 13 mm

Plane dimension(small one)

25 ×25 × 13 mm

Material

ABS

Color

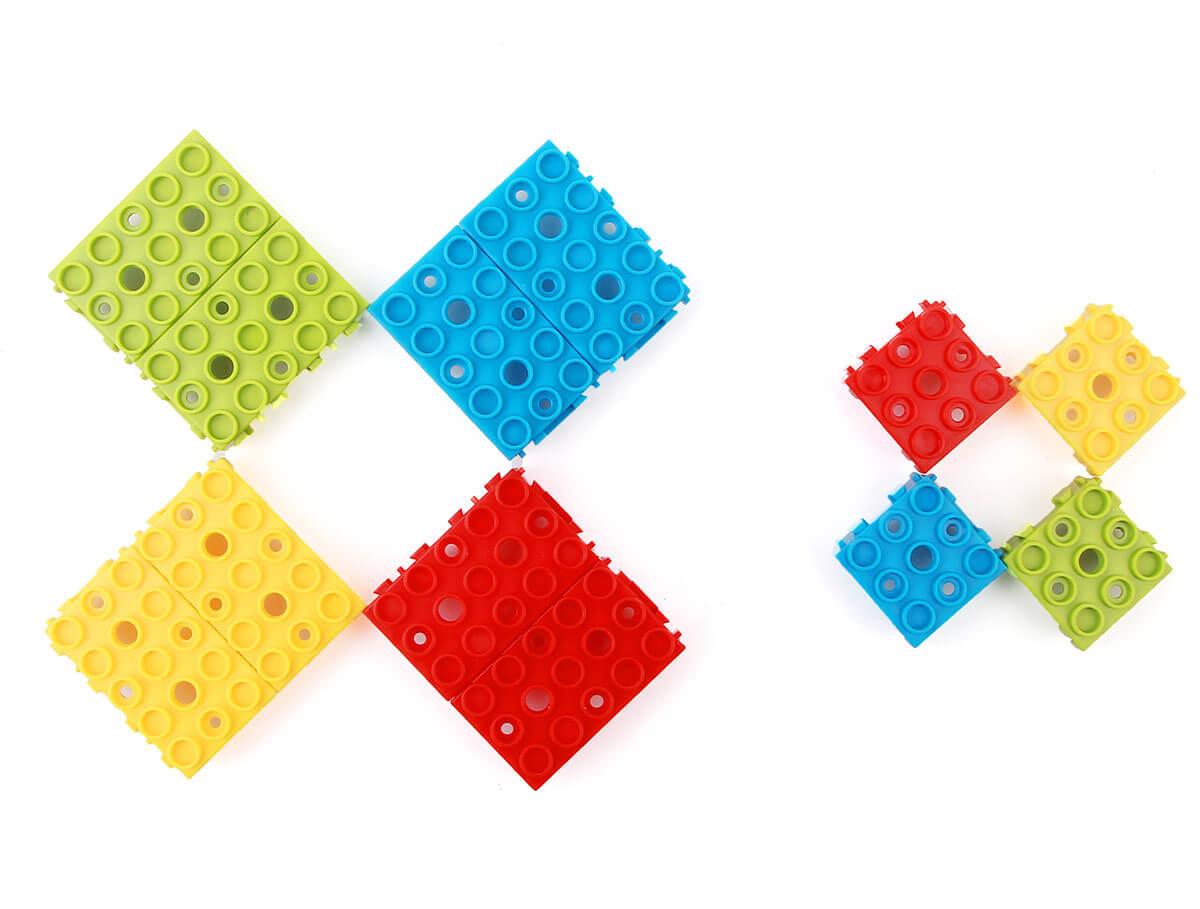

Blue, green, yellow and red for both sizes for wrapper.

Different type of wrapper and corresponding SKU

**Product name**

**SKU**

Red Grove Wrapper 1*1(4 PCS pack)

110070020

Yellow Grove Wrapper 1*1(4 PCS pack)

110070021

Blue Grove Wrapper 1*1(4 PCS pack)

110070022

Green Grove Wrapper 1*1(4 PCS pack)

110070023

Red Grove Wrapper 1*2(4 PCS pack)

110070024

Yellow Grove Wrapper 1*2(4 PCS pack)

110070025

Blue Grove Wrapper 1*2(4 PCS pack)

110070026

Green Grove Wrapper 1*2(4 PCS pack)

110070027

Hardware Overview

Introduction to hardware

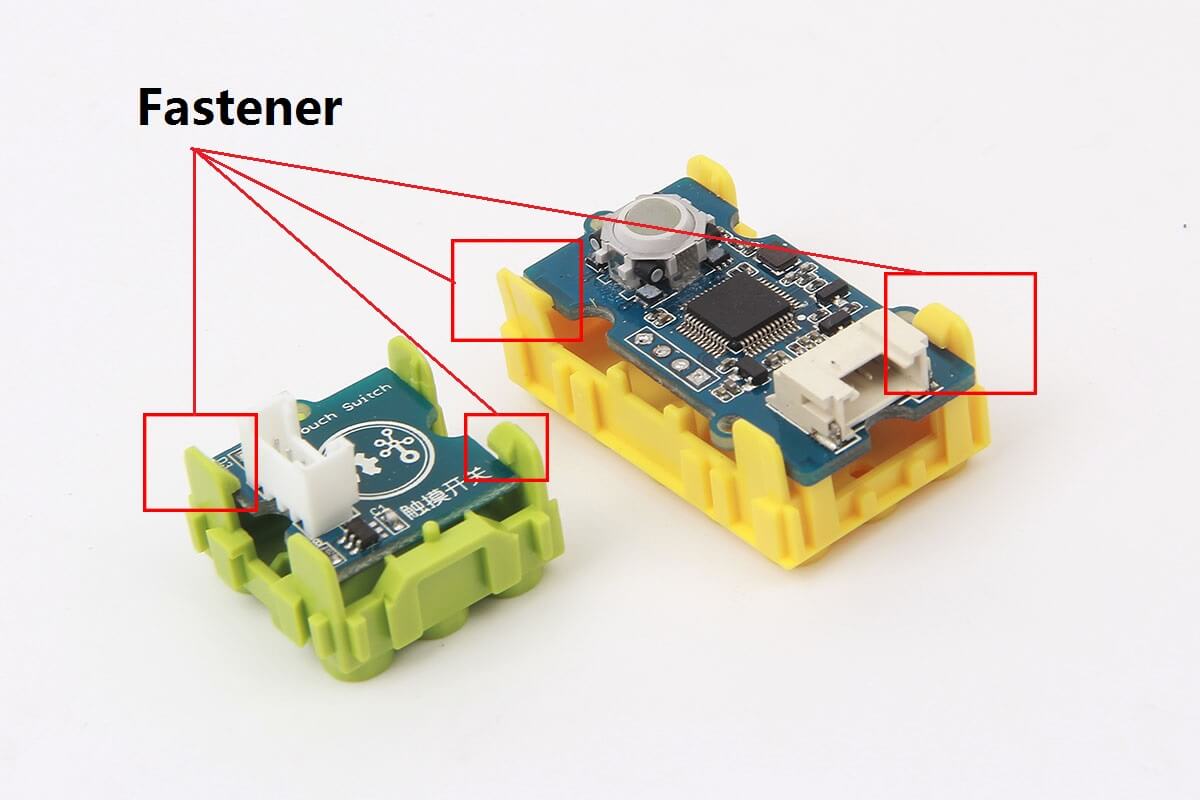

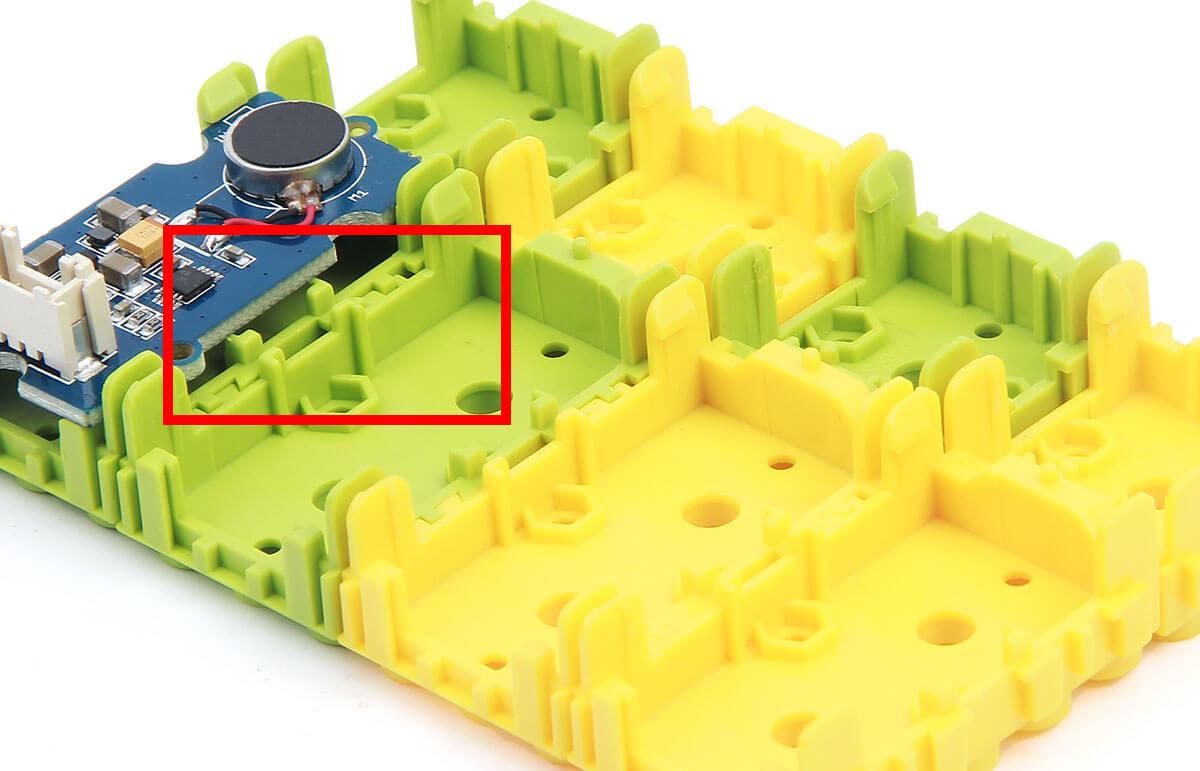

Fastener

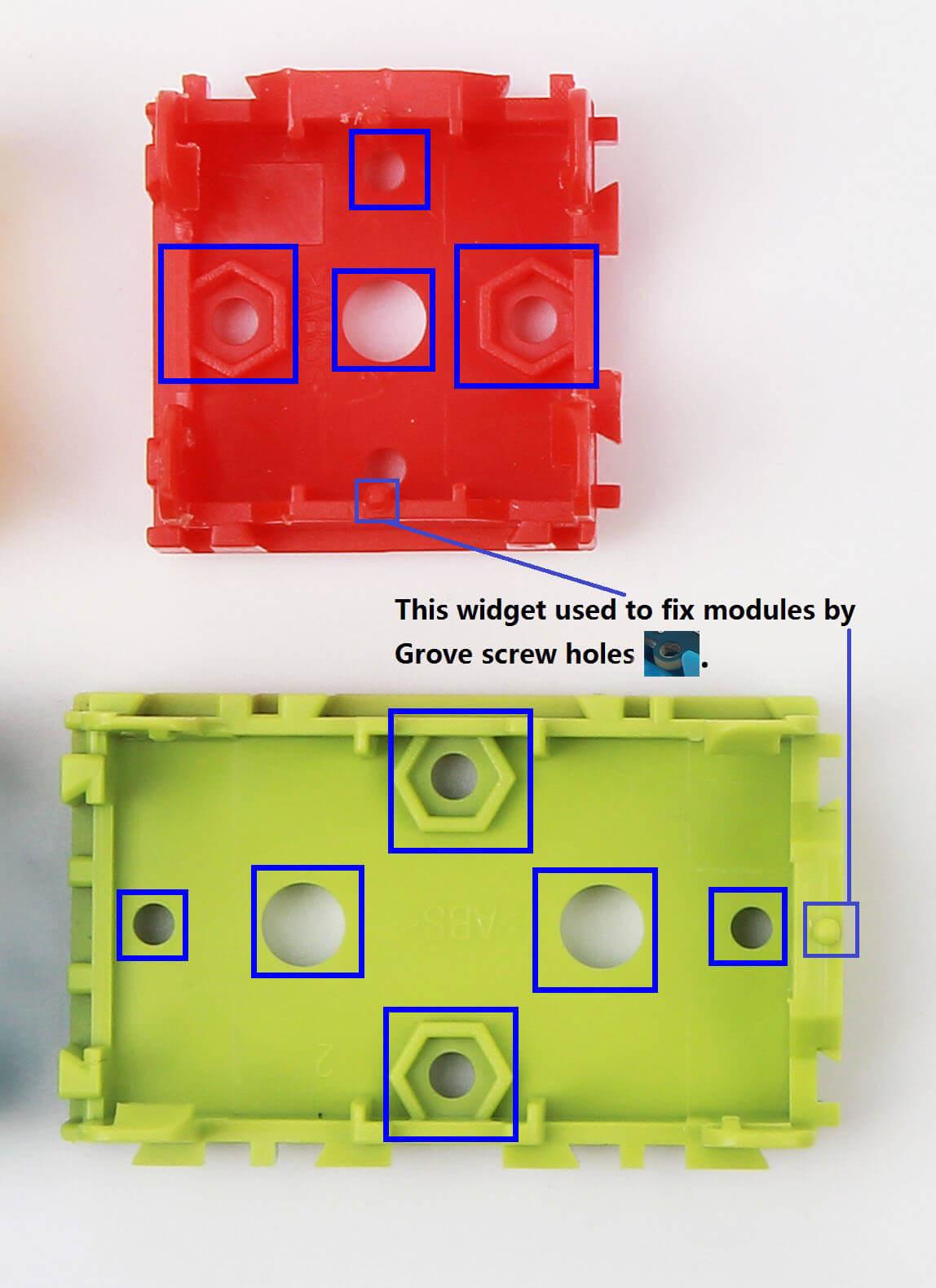

Screw holes

Note you can also use rivet to replace screw to fasten it on other blocks.

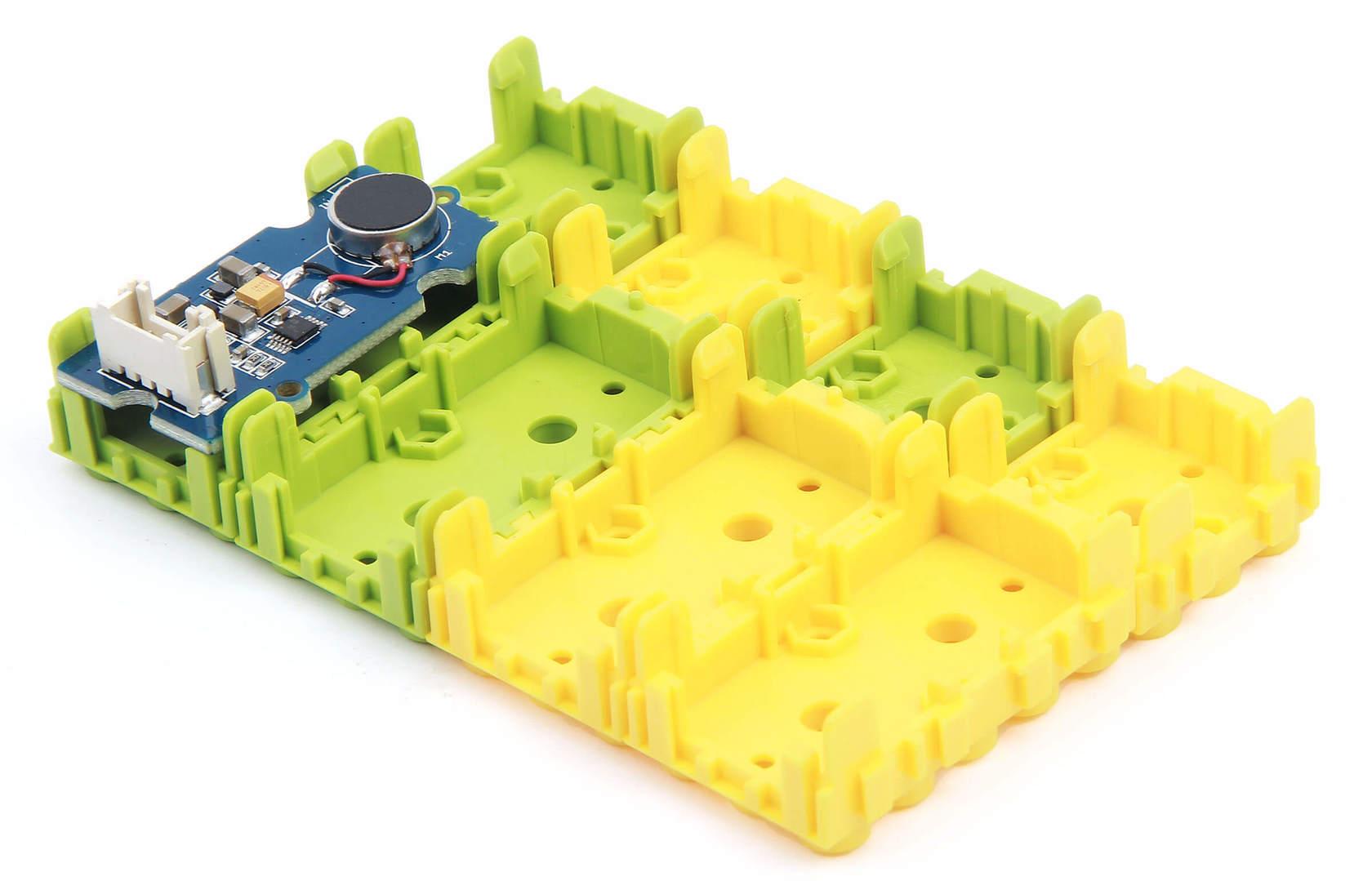

How to connect Grove - Wrapper

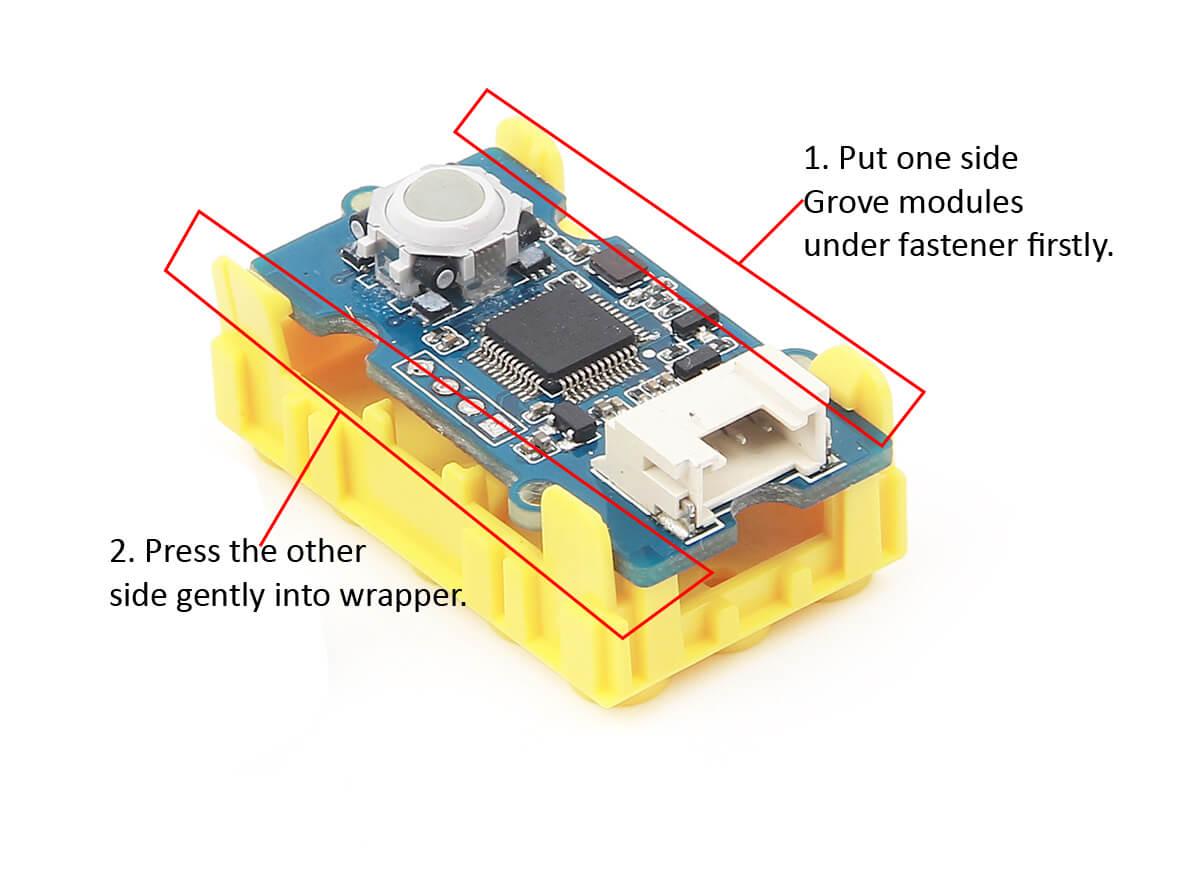

How to install Grove modules on Grove - Wrapper

Parts list

Parts name

Quantity

Grove - Wrapper(only one size in one color)

4 PCS

Cross recessed flat head screw PM2.0*H10.0MM Cross recessed flat head screw CM4.0*H8.0MM Nut(Silver) M2.0*H1.5mm

8 PCS for each items

Demos

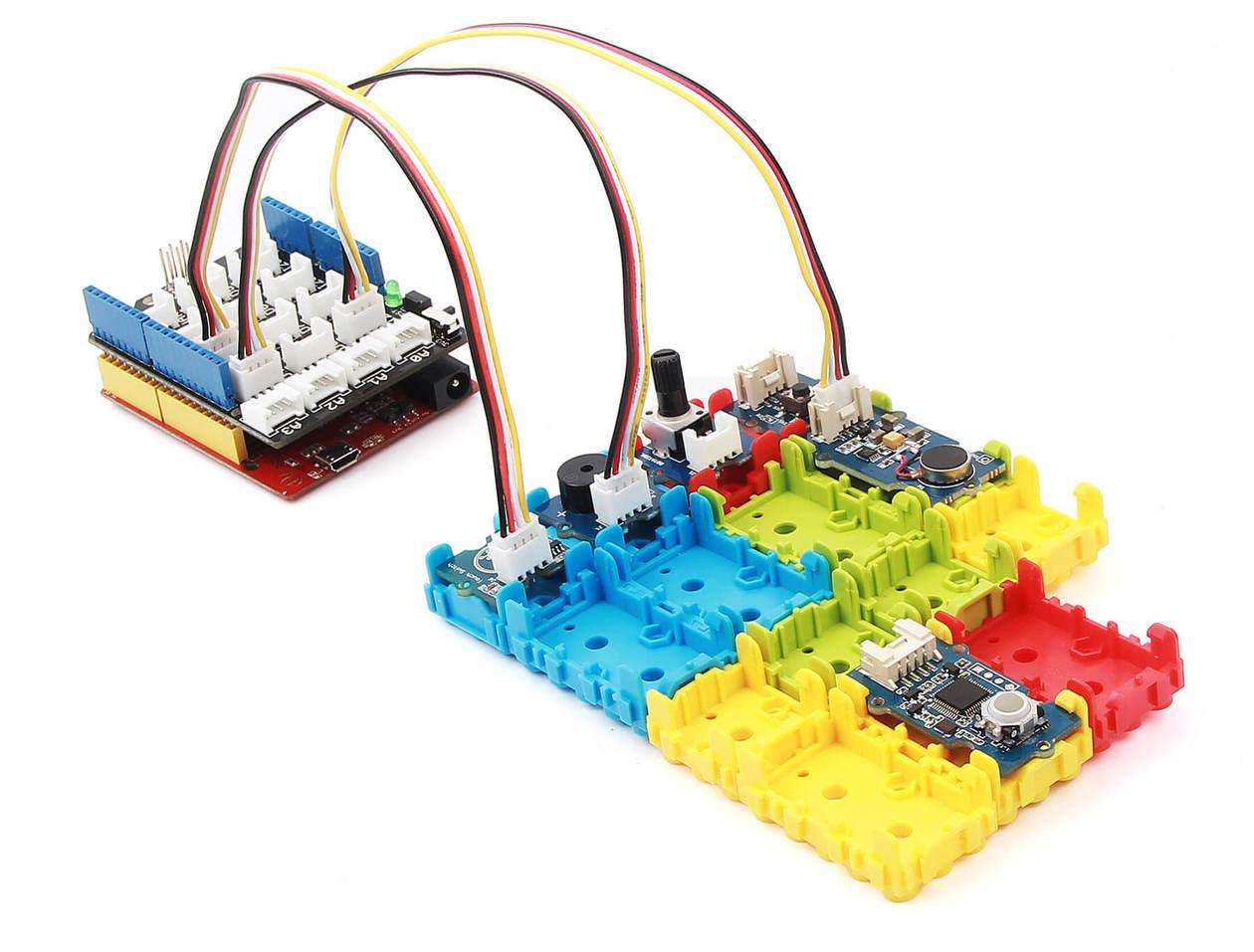

Wrapper Connections

Install Grove - Wrapper on Lego blocks

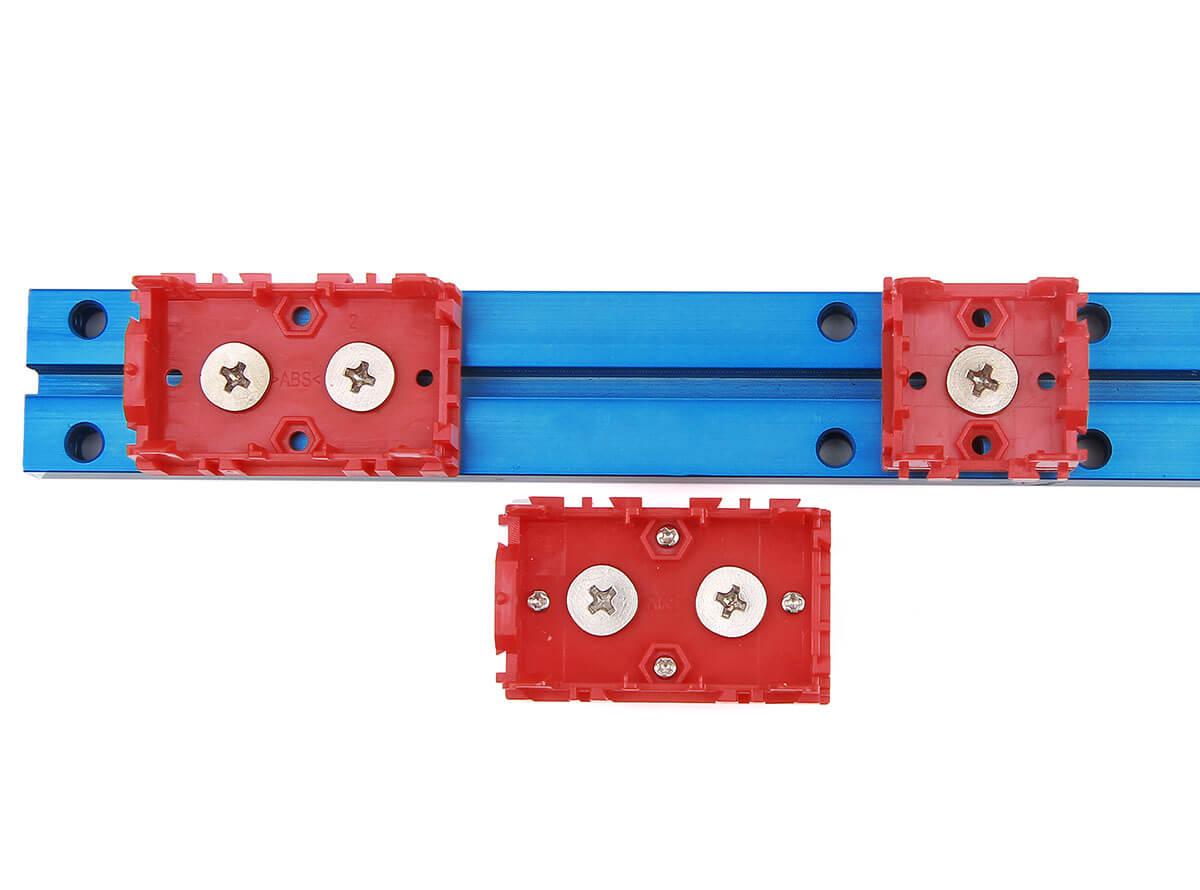

Install Grove - Wrapper on Makeblock

Notes

For a novice, it may find a little hard to assemble them. Do not be frustrated. You will be skillful after trying dozen times. And if you have some experience with Lego, that will be helpful.

Resources

This section() will show some tips on assembling a grove modules skillfully.

Assembly guide
Mechanical Files
Specifications
