Grove Dry Reed Relay

PreviousGrove BuzzerNextGrove EL Driver

Last updated 5 years ago

Was this helpful?

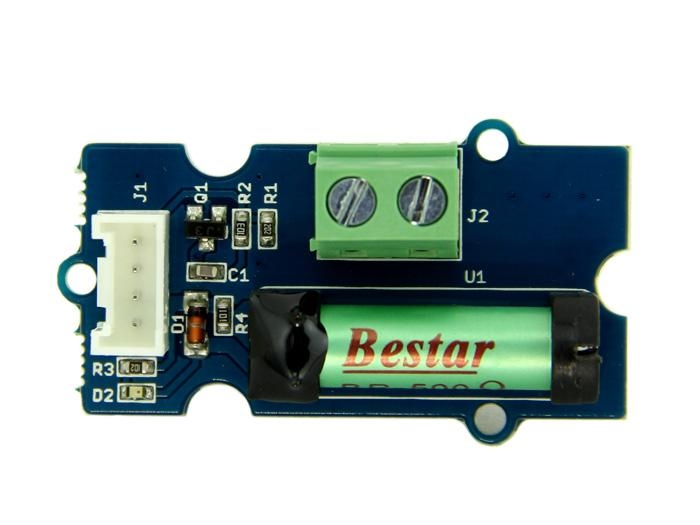

The Grove-Dry Reed Relay is a relay module which works through magnetizing the vibration reed via the current in the coils. Compared to electromagnetic relays, the contacts completely sealed is the biggest feature of the Dry-Reed Relay. Besides, it features simplicity in construct, compactness, fast speed and long life, which make it widely applied in many fields such as microelectronic detection, Automatic Control etc.

Features

  • Grove Interface

  • High Speed

  • Good stability

  • Long contact life

  • Contact fully sealed

Specifications

Item

Min

Typical

Max

Unit

Voltage

4.8

5.0

5.2

VDC

Coil Resistance

225

250

275

Ω

Pick-Up Voltage

3.75

VDC

Switching Current(Max)

0.5

A

Switching Voltage(Max)

120 VAC/60VDC

-

Carrying Current(Max)

1.0

A

Operate Time(Max)

1.0

mS

Release Time(Max)

0.5

mS

Mechanical Life(at no load)

1×108 operations

-

Ambient Temperature

-30

/

70

˚C

Platforms Supported

Usage

With Arduino

The Dry-Reed Relay can support up to 60VDC 1A load. You can use it to control resistance load, but it is not applicable to inductive load(such as Motor).

The usage of this Dry-reed relay is quite alike that of common relays.

  • Connect electric light to Grove - Dry-Reed Relay and power for electric light.

  • Upload the below code.

    int Relay = 2;

    // the setup routine runs once when you press reset:
    void setup() {
      // initialize the digital pin as an output.
      pinMode(Relay, OUTPUT);
    }

    // the loop routine runs over and over again forever:
    void loop() {
      digitalWrite(Relay, HIGH);   //the Relay close(HIGH is the voltage level)
      delay(5000);               // wait for five seconds
      digitalWrite(Relay, LOW);    //the Relay normally open by making the voltage LOW
      delay(5000);               // wait for five seconds
    }
  • The electric light will light up for seconds ,then off for seconds, repeatedly.For the special applications, you may need to write the code by yourself.

With Raspberry Pi

1.You should have got a raspberry pi and a grovepi or grovepi+.

3.Connection

  • Plug the sensor to grovepi socket D4 by using a grove cable.

4.Navigate to the demos' directory:

    cd yourpath/GrovePi/Software/Python/
  • To see the code

    nano grove_relay.py   # "Ctrl+x" to exit #
    import time
    import grovepi

    # Connect the Grove Relay to digital port D4
    # SIG,NC,VCC,GND
    relay = 4

    grovepi.pinMode(relay,"OUTPUT")

    while True:
        try:
            # switch on for 5 seconds
            grovepi.digitalWrite(relay,1)
            print "on"
            time.sleep(5)

            # switch off for 5 seconds
            grovepi.digitalWrite(relay,0)
            print "off"
            time.sleep(5)

        except KeyboardInterrupt:
            grovepi.digitalWrite(relay,0)
            break
        except IOError:
            print "Error"

5.Run the demo.

    sudo python grove_relay.py

Resources

!!!Tip More details about Grove modules please refer to

Connect Grove - Dry-Reed Relay to port D2 of and plug it into Arduino/Seeeduino.

2.You should have completed configuring the development enviroment, otherwise follow .

Grove System
Grove - Base Shield
here
Grove - Dry-Reed Relay Eagle File
Dry-Reed Relay Datasheet
