# Grove 3 Axis Digital Gyro

![](https://raw.githubusercontent.com/SeeedDocument/Grove-3-Axis_Digital_Gyro/master/img/Grove-3-Axis_Digital_Gyro.jpg)

Grove - 3-Axis Digital Gyro module based on ITG 3200. It is the world’s first single-chip, digital-output, 3-axis MEMS motion processing gyro optimised for gaming, 3D mice, and motion-based remote control applications for Internet connected Digital TVs and Set Top Boxes. The ITG-3200 features three 16-bit analog-to-digital converters (ADCs) for digitising the gyro outputs, a user-selectable internal low-pass filter bandwidth, and a Fast-Mode I2C (400kHz) interface.

[![](https://raw.githubusercontent.com/SeeedDocument/common/master/Get_One_Now_Banner.png)](http://www.seeedstudio.com/Grove-3-Axis-Digital-Gyro-p-750.html)

## Features

* Supply Voltage: 3.3V, 5V
* Operation Current: 6.5mA
* Standby current: 5μA
* Sensitivity: 14 LSBs per °/sec
* Full scale range: ±2000°/sec
* Acceleration: 10,000g for 0.3ms
* I2C Interface
* ±2000°/s full scale range and 14.375 LSBs per °/s sensitivity
* Three integrated 16-bit ADCs
* On-chip temperature sensor
* Integrated amplifiers and low-pass filters
* Hermetically sealed for temp and humidity resistance
* RoHS and Green compliant

!!!Tip More details about Grove modules please refer to [Grove System](http://wiki.seeed.cc/Grove_System/)

## Platforms Supported

## Demonstration

This demo will show you how to get data from this digital gyro, the data is in the unit of rad/s.

Here we need a Grove - 3-Axis Digital Gyro and a Seeeduino V3.0.

### Hardware Installation

Hardware installation is very easy, because there's an I2C Grove in Seeeduino,

So, what we need to do is connect it to I2C Grove via a Grove cable.

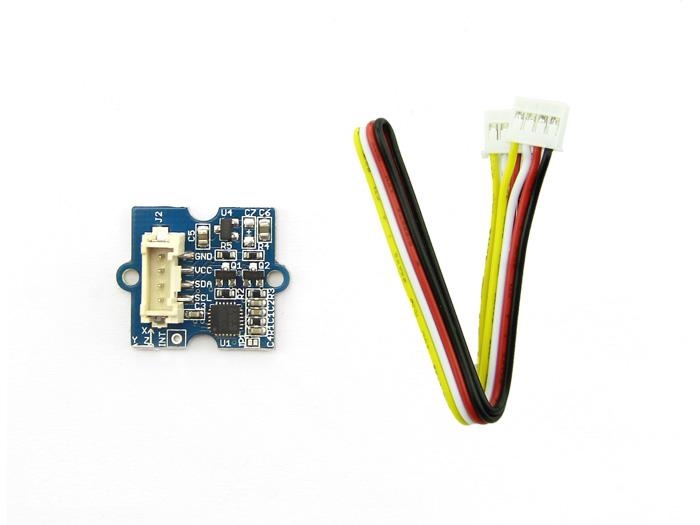

![](https://raw.githubusercontent.com/SeeedDocument/Grove-3-Axis_Digital_Gyro/master/img/Grove-3-Axis_Digital_Gyro_Hardware.JPG)

### Download Code and Upload

You can download the library in github, click [here](https://github.com/Seeed-Studio/Grove_3_Axis_Digital_Gyro/), then extract it to libraries folder of Arduino.

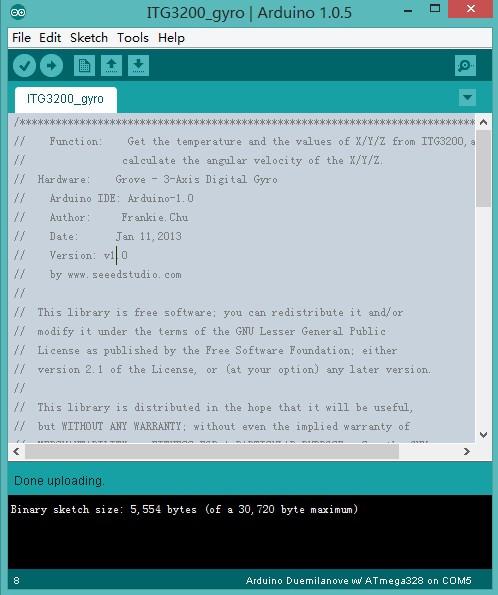

Then open File -> examples -> Grove\_3\_Digital\_Gyro -> ITG3200\_gyro, you can open the demo code.

![](https://raw.githubusercontent.com/SeeedDocument/Grove-3-Axis_Digital_Gyro/master/img/ITG3200_gyro_ArduinoIde.jpg)

Click Upload to upload the code, if you have any problem about how to start Arduino, please click [here](https://app.gitbook.com/Getting_Started_with_Seeeduino) for some help.

### Check the result

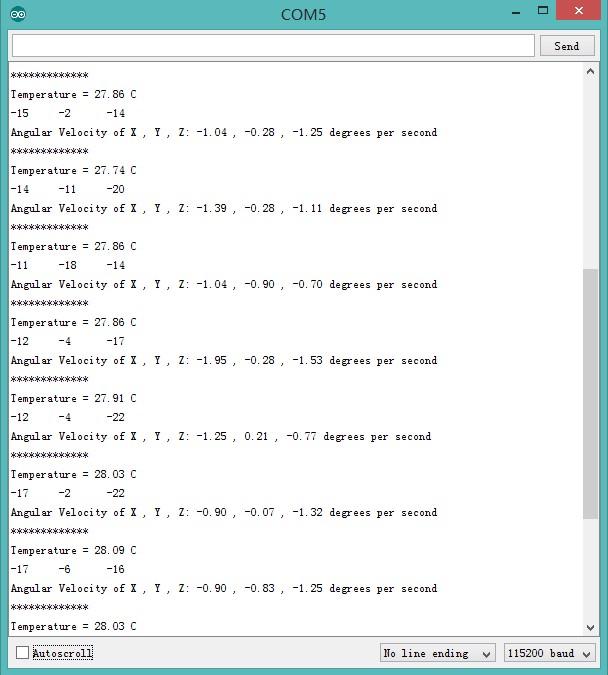

Now, you can open the serial monitor to check the result.

![](https://raw.githubusercontent.com/SeeedDocument/Grove-3-Axis_Digital_Gyro/master/img/Grove-3-Axis_Digital_Gyro_SerialDta.jpg)

## Reference

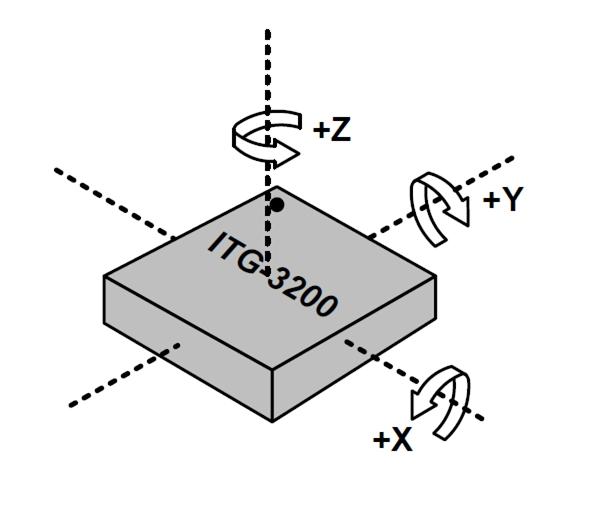

The diagram below shows the orientations of the 3 axes. You can use it to understand the physical meanings of the result.

![](https://raw.githubusercontent.com/SeeedDocument/Grove-3-Axis_Digital_Gyro/master/img/Gyro_Reference_1.jpg)

## Resources

* [Datasheet of ITG-3200.](https://raw.githubusercontent.com/SeeedDocument/Grove-3-Axis_Digital_Gyro/master/res/ITG-3200.pdf)
* [Grove - 3-Axis Digital Gyro Eagle File](https://raw.githubusercontent.com/SeeedDocument/Grove-3-Axis_Digital_Gyro/master/res/Grove-3-Axis_Digital_Gyro_Eagle_File.zip)
* [Digital Gyro Library](https://github.com/Seeed-Studio/Grove_3_Axis_Digital_Gyro)


---
