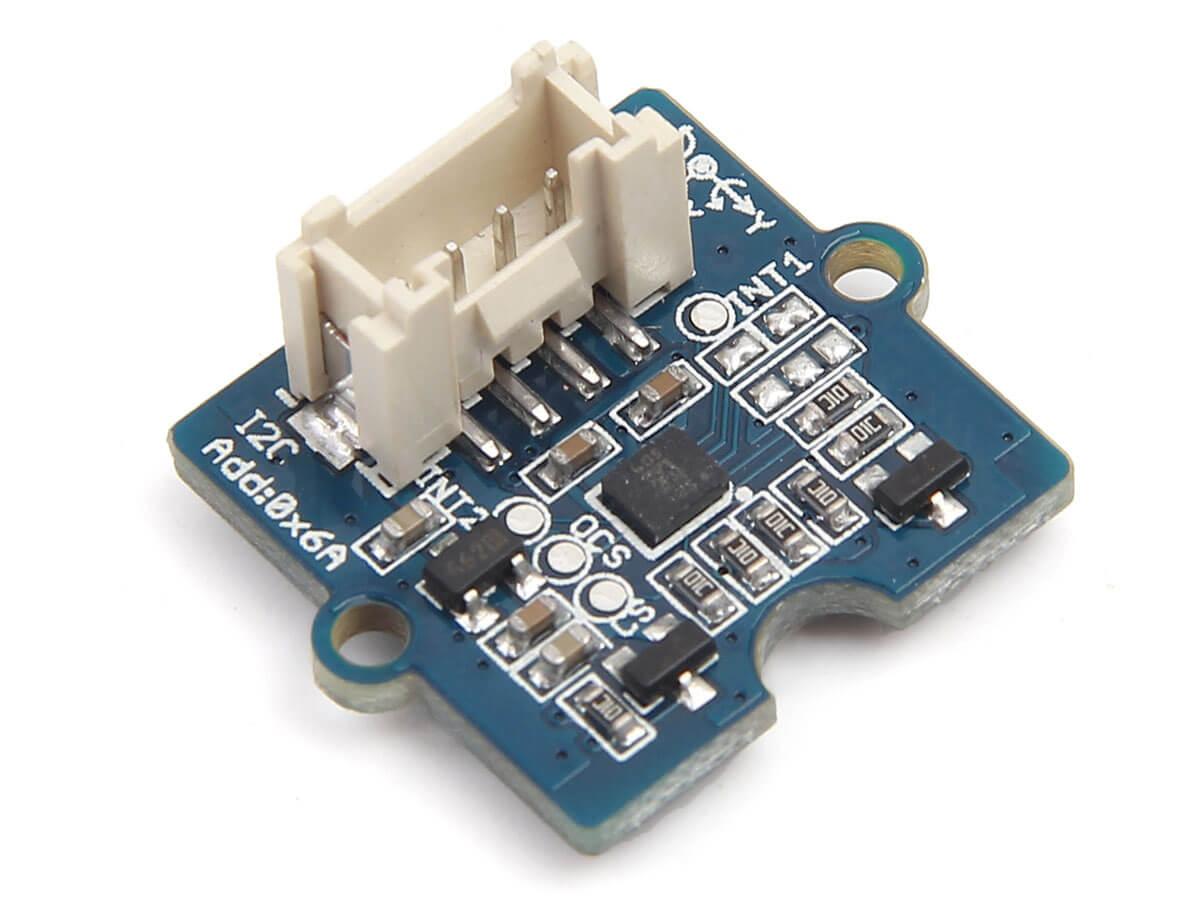

Grove - 6-Axis Accelerometer&Gyroscope is a cost-effective Grove interfaced and integrated sensor combination of 3-axis digital accelerometer and 3-axis digital gyroscope.

With a serious low power consumption digital chip LSM6DS3() and power supply regulator inside, it features high sensitivity, green tech and low noise interference. It can be configured to different sensitivity levels of acceleration and different angular rate measurement range. Provided with detailed SDK, it can make the prototyping process quicker and easier.

This product can be used for different applications for tilt, motion, and tap sensings, such as robotics, IoT devices and consumer electronic devices.

Features

  • Grove interfaced and cost-effective.

  • Digital-output for 6 DOF motion data.

  • ±2/±4/±8/±16 g full scale leaner acceleration sensing range for various environment.

  • ±125, ±245, ±500, ±1000, ±2000 degree per seconds(dps) for angular rate measurement range make it versatile.

  • Detailed SDK for easier programming.

  • Regulated power supply for reliable data to be collected.

  • Programmed interrupts for different event.

  • 8 kB data buffering.

Application ideas

  • Robotics

  • Consumer-level aircraft

  • Computer input devices

  • Wearable devices.

  • IoT things

Specifications

Parameter

Value

Analog supply voltage:

5V/3.3V(DC)

Power consumption:

0.9 mA in combo normal mode and 1.25 mA in combo high-performance mode up to 1.6 kHz

Linear acceleration measurement range

±2/±4/±8/±16 g full scale (typical value)

Angular rate measurement range

±125, ±245, ±500, ±1000, ±2000 dps(typical value)

Linear acceleration sensitivity

0.061(FS = ±2), 0.122(FS = ±4), 0.244(FS = ±8), 0.488(FS = ±16) mg/LSB

Angular rate sensitivity

4.375(FS = ±125), 8.75(FS = ±245), 17.50(FS = ±500), 35(FS = ±1000), 70(FS = ±2000)

Platforms Supported

Note If no version number is not represented for a specific platform, it means this product support all versions within this platform. But you will need additional corresponding Grove shield board such as Grove - Base Shield v2.

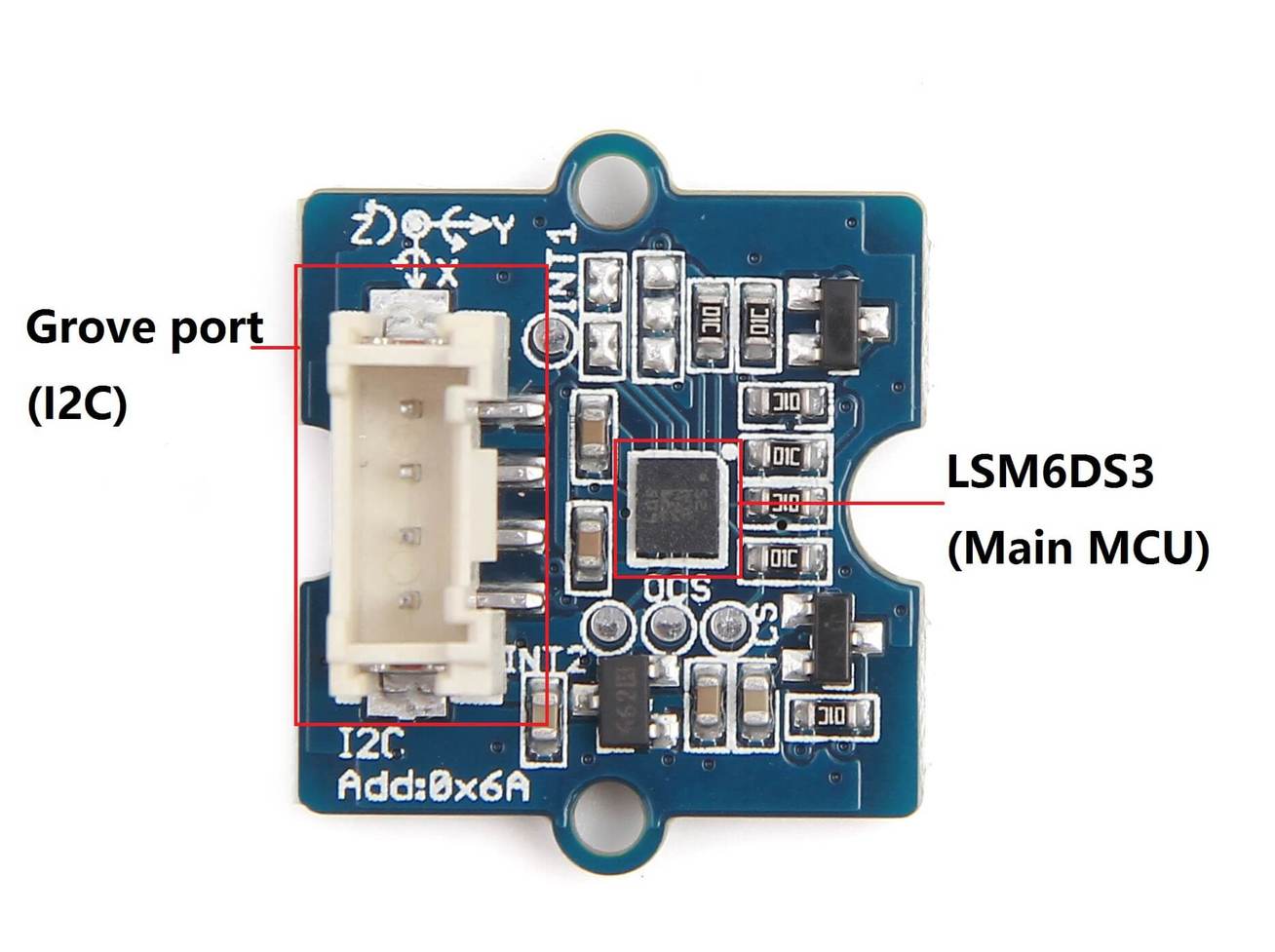

Hardware Overview

Grove Port Connect main control board such as Seeeduino board with driver board.

LSM6DS3 Main MCU.

Parts list

Parts name

Quantity

Grove - 6-Axis Accelerometer&Gyroscope

1PC

Grove wire

1PC

Get started

Material required

  • Seeeduino * 1

  • Grove - Base Shield v2

Preparations

Refer to following guides to build an appropriate IDE:

Note We have chosen Seeeduino and it is compatible with Arduino in this case. You can also use Arduino board instead.

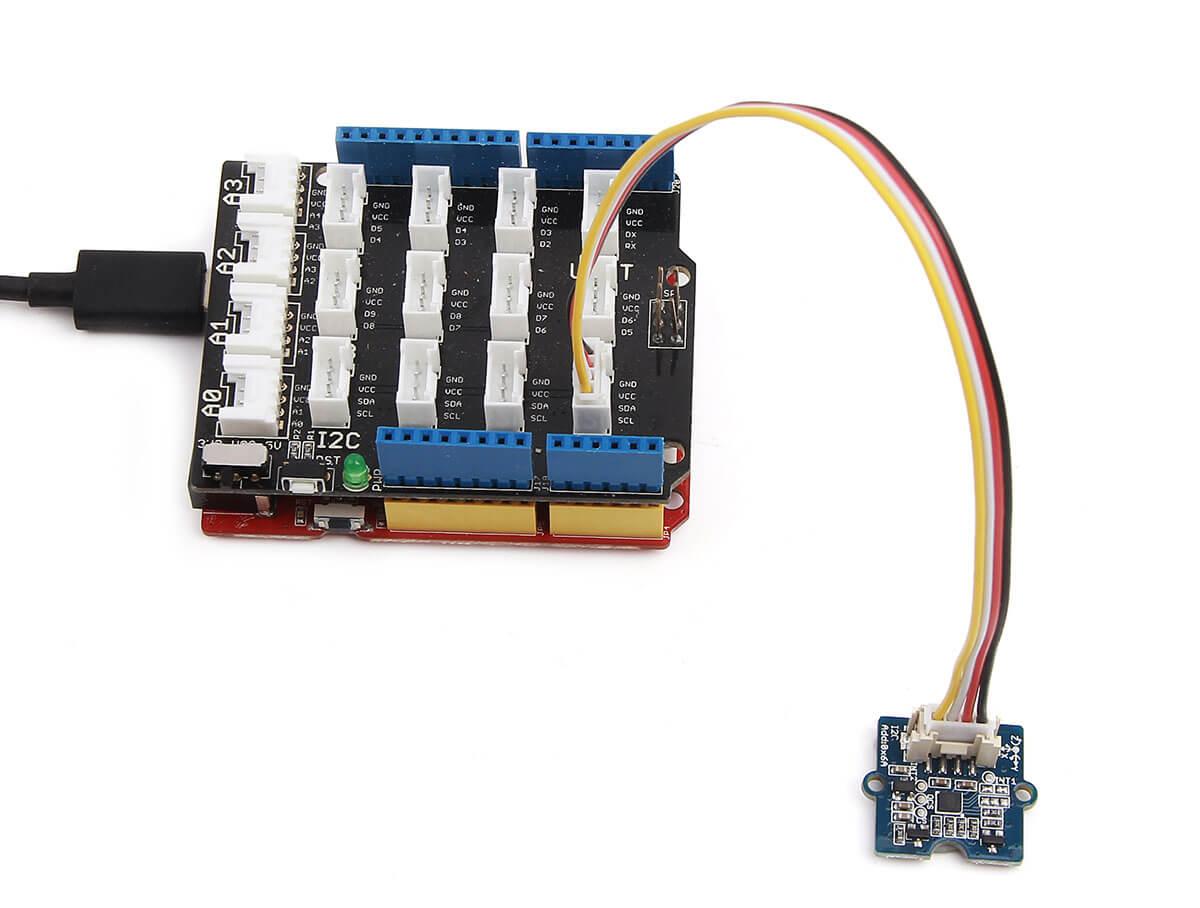

Hardware connections

Note Plug Grove - 6-Axis Accelerometer&Gyroscope to I2C interface on Grove - Base shield. Connect power supply with USB cable.

A little demo

Resources

!!!Tip More details about Grove modules please refer to

For detailed information please refer to .

Download the for Grove - 6-Axis Accelerometer&Gyroscope. Refer to [Guide to use demos downloaded from Seeed's Github](/Guide_to_use_demos_downloaded_from_Seeed's_Github) for quicker flashing your code to main controller board. There are three demo examples in total in sub directory examples.

[Eagle]

[PDF]

[PDF]

[Library]

[Datasheet]

Grove System
datasheet
Getting Started on Windows
Getting Started on Mac OS X
library
Grove - 6-Axis Accelerometer&Gyroscopev 1.0
Grove - 6-Axis Accelerometer&Gyroscopev 1.0 SCH
Grove - 6-Axis Accelerometer&Gyroscopev 1.0 PCB
Grove-6-Axis_AccelerometerAndGyroscope
Datasheet of LSM6DS3
datasheet
